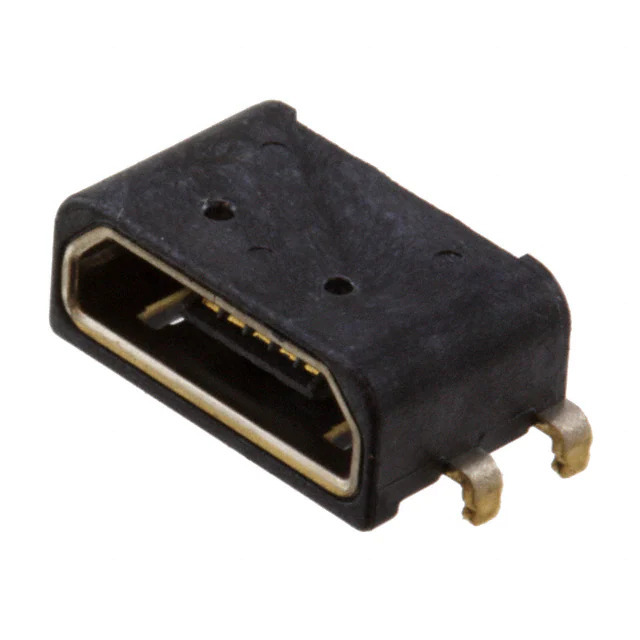

ZX62WRD-B-5PC Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

ZX62WRD-B-5PC

Part No ZX62WRD-B-5PC
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MICRO B SMD R/A / USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle; Through Hole
Datasheet
ZX62WRD-B-5PC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Hirose Electric Co Ltd
Series ZX62W
Package Tape & Reel
Product Status Active
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal, Reverse Mount
Termination Solder
Features -
Ingress Protection Splash Proof
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1.8A
Voltage - Rated 30VAC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color -
Base Product Number ZX62
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364368-ZX62WRD-B-5PC
Ultra Librarian 3D Model Ultra Librarian ZX62WRD-B-5PC CAD Model

Description

The ZX62W series from Hirose Electric Co Ltd is a USB micro B connector assembly.

  • Temperature Range: -30°C to 85°C
  • Feature: Shielded
  • Contact Finish: Gold
  • Mounting Type: Surface Mount, Right Angle (can also be mounted through hole)
  • Number of Contacts: 5
  • Number of Ports: 1
  • Voltage Rating: 30VAC
  • Current Rating: 1.8A
  • Feature: Splash Proof
  • Flammability Rating: UL94 V-0
  • Mounting Feature: Horizontal and Reverse Mounting
  • Connector Gender: Receptacle
  • Mating Cycle: 10,000
  • Application: USB 2.0
