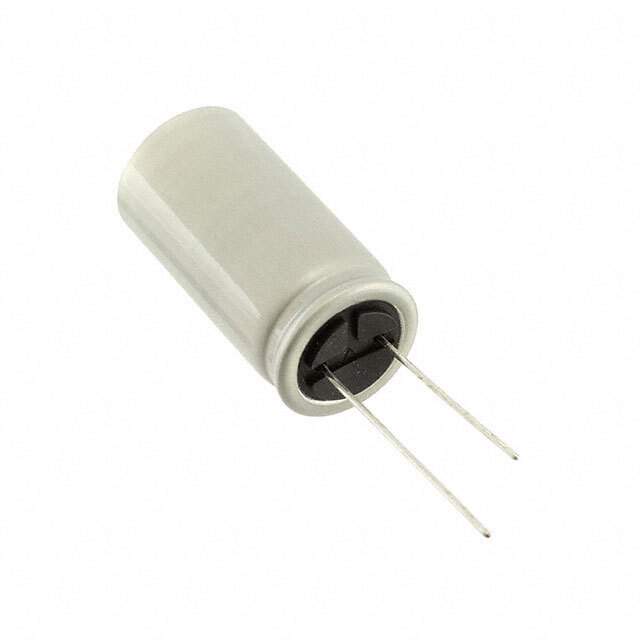

EGPD500ELL302MM35H Real Image1 EGPD500ELL302MM35H Real Image2
Same model may have multiple batches, images only for reference.
EGPD500ELL302MM35H Real Image1 EGPD500ELL302MM35H Real Image2
EGPD500ELL302MM35H Real Image1 EGPD500ELL302MM35H Real Image2
Same model may have multiple batches, images only for reference.

EGPD500ELL302MM35H

Part No EGPD500ELL302MM35H
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 3000UF 20% 50V RADIAL / 3000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 24mOhm @ 100kHz 3000 Hrs @ 135°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series GPD
Package Bulk
Capacitance 3000 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 24mOhm @ 100kHz
Lifetime @ Temp. 3000 Hrs @ 135°C
Temperature Range - Operating -40°C ~ 135°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 4.4025 A @ 120 Hz
Ripple Current @ High Frequency 5.87 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.437" (36.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 200 pcs
Win Source Part Number 1381994-EGPD500ELL302MM35H
Ultra Librarian 3D Model Ultra Librarian EGPD500ELL302MM35H CAD Model

Description

The EGPD500ELL302MM35H is an aluminum electrolytic capacitor manufactured by United Chemi-Con.

  • Series: GPD
  • Package: Bulk
  • Size/Dimension: 0.709" in diameter
  • Application: Automotive
  • Capacitance: 3000 µF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • AEC-Q200: Yes
  • ESR: 24mOhm @ 100kHz
  • Lifetime: 3000 hours @ 135°C
  • Polarization: Polarized
  • Mounting Type: Through Hole
