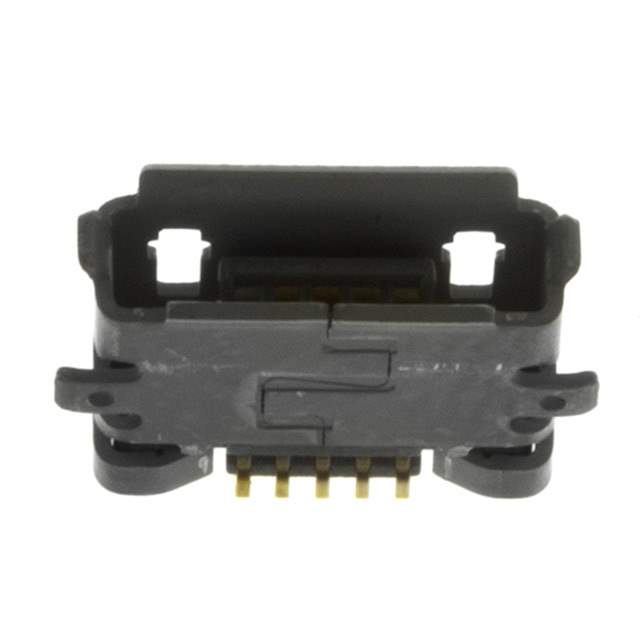

ZX62-AB-5PA(11) Real Image
Same model may have multiple batches, images only for reference.

ZX62-AB-5PA(11)

Part No ZX62-AB-5PA(11)
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT MICRO USB AB SMD R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type USB - micro AB
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Pick and Place, Solder Retention
Temperature Range - Operating -30°C to 85°C
Number of Ports 1
Current Rating 1.8A
Voltage Rating 30VAC
Mating Cycles 10000
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Gray
Win Source Part Number 044157-ZX62-AB-5PA(11)
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Consumer Electronics, Portable Devices, Multimedia
Ultra Librarian 3D Model Ultra Librarian ZX62-AB-5PA(11) CAD Model

Description

The Hirose Electric Co Ltd 044157-ZX62-AB-5PA(11) is a USB micro AB connector that features solder termination and gold contact finish.

  • Voltage Rating: 30VAC
  • Current Rating: 1.8A
  • Contacts: 5
  • Mounting: Surface mount (SMD)
  • Mounting Feature: Right angle
  • Flammability Rating: UL94 V-0
  • Shell/Shielding Material: Steel and stainless
  • Mating Cycle: 10000
  • Operating Temperatures: -30°C to 85°C
  • Supply and Demand Status: limited
