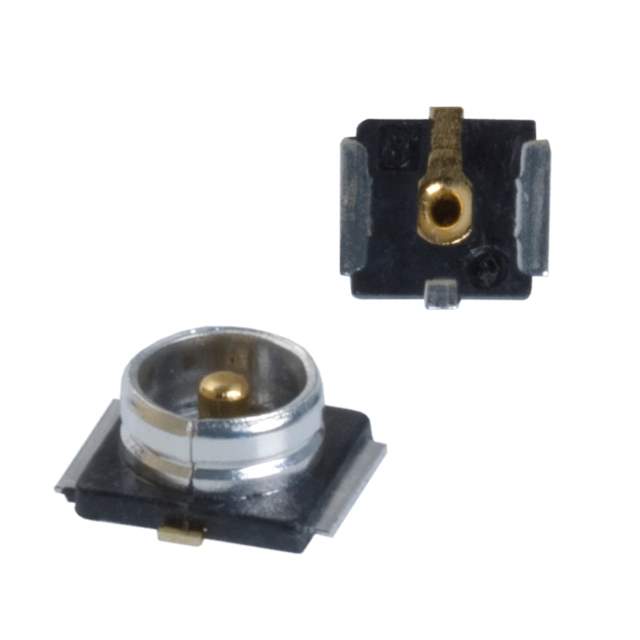

W.FL-R-SMT-1(10) Real Image
Same model may have multiple batches, images only for reference.

W.FL-R-SMT-1(10)

Part No W.FL-R-SMT-1(10)
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF)
Description Conn Coaxial RCP 0Hz to 6GHz 50Ohm Solder ST SMD Gold / CONN W.FL RCPT STR 50 OHM SMD
Datasheet
W.FL-R-SMT-1(10) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Style Ultra Miniature Coaxial
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Maximum Input Frequency 6GHz
Housing Color Black
Body Material Phosphor Bronze
Body Finish Silver
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C to 90°C
Center Contact Material Brass
Mating Cycles 20
Win Source Part Number 036480-W.FL-R-SMT-1(10)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 2k pcs
Family Name W.FL
Introduction Date April 01, 2004
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian W.FL-R-SMT-1(10) CAD Model

Description

The Hirose Electric Co Ltd 036480-W.FL-R-SMT-1(10) is a high-quality connector that is perfect for a range of electronic applications.

  • Connector Type: Receptacle, male pin connector
  • Fastening Type: Snap-on
  • Contact Termination: Solder
  • Connector: Ultra-miniature coaxial
  • Housing Color: Black
  • Mounting: Surface mount technology (SMT)
  • Impedance: 50 Ohm
  • Maximum Input Frequency: 6GHz
  • Supply and Demand Status: Balanced
  • Package: 2k pcs
