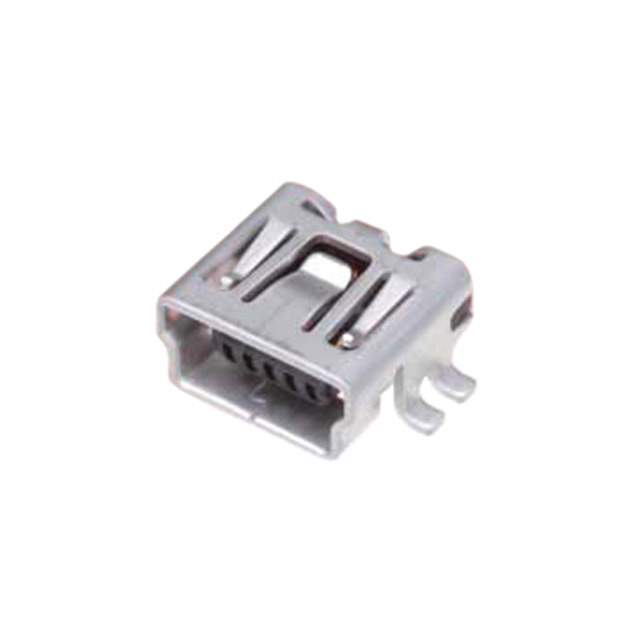

UX60SC-MB-5ST Real Image
Same model may have multiple batches, images only for reference.

UX60SC-MB-5ST

Part No UX60SC-MB-5ST
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MINI B SMD R/A / Mini-B Connectors, SMT mount receptacles meeting requirements of USB 2.0 Standard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Connector Type USB - mini B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Style Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Solder Retention
Temperature Range - Operating -30°C ~ 75°C
Number of Ports 1
Current Rating (Amps) 1A
Voltage - Rated 30VAC
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Phosphor Bronze
Material Flammability Rating UL94 V-0
Insulation Color Black
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812839-UX60SC-MB-5ST
Ultra Librarian 3D Model Ultra Librarian UX60SC-MB-5ST CAD Model

Description

The Hirose Electric Co Ltd UX60SC-MB-5ST is a USB mini B receptacle connector with a right-angle surface mount and solder termination. The manufacturer is Hirose Electric Co Ltd.

  • USB Standard: USB 2.0
  • Features: Solder Retention, Gold Contact Finish, Shielding
  • Contacts: 5
  • Voltage Rating: 30VAC
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Mounting Feature: Horizontal
  • Temperature Range: -30°C to 75°C
  • Shell/Shielding Material: Phosphor Bronze
  • Packaging: Reel
  • Popularity: Low
  • Supply and Demand Status: Limited
  • MSL Level: 1 (unlimited)
  • Current Rating: 1A
