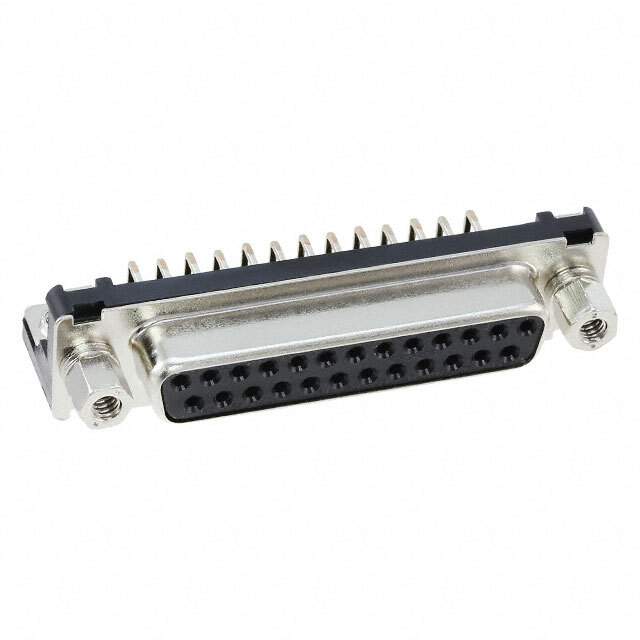

RDBD-25S-LNA(4-40)(55)

Part No RDBD-25S-LNA(4-40)(55)
Manufacturer Hirose Electric Co Ltd
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 25POS R/A SLDR / 25 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Hirose Electric Co Ltd
Series RD*D
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 350V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 85°C
Base Product Number RDBD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H122879,*RDBD-25S-LNA(4-40)(55),*RDBD-25S-LNA(4-40)(55)-ND,-RDBD-25S-LNA(4-40)(55),211-0302-0-55
Standard Package 35
Win Source Part Number 1110242-RDBD-25S-LNA(4-40)(55)
Ultra Librarian 3D Model Ultra Librarian RDBD-25S-LNA(4-40)(55) CAD Model

Description

The RD*D series connector is a popular D-sub connector used in various applications from Hirose Electric Co Ltd.

  • Positions: 25
  • Color: Black
  • Connector Type: Receptacle, Female Sockets
  • Contact Type: Signal
  • Standard Package: 35
  • Mounting: Panel Mount, Through Hole, Right Angle
  • ECCN: EAR99
  • RoHS: Compliant
  • Flange Feature: Mating Side, Female Screwlock (4-40)
  • Flange Material: Steel, Nickel Plated
  • Operating Temperature Range: -55°C to 85°C
