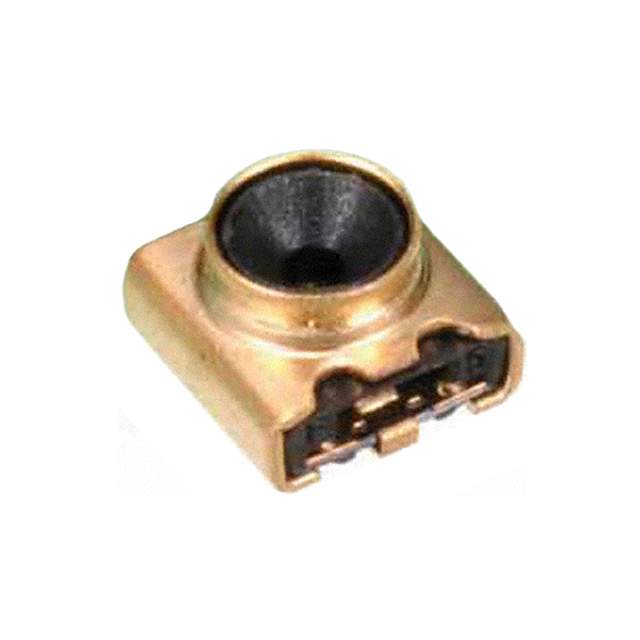

MS-156HF Real Image
Same model may have multiple batches, images only for reference.

MS-156HF

Part No MS-156HF
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF)
Description CONN COAX SWITCH RCPT STR 50OHM / Subminiature Coaxial Switch 1.35 mm High, DC to 11 GHz
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Connector Style Coaxial Switch - 4mm Plug Dia
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Style SMD
Fastening Type Snap-On
Frequency - Max 6GHz
Number of Ports 1
Features Internal Switch
Housing Color Gold
Body Material Phosphor Bronze
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polyamide (PA), Nylon 6T
Temperature Range - Operating -40°C ~ 85°C
Center Contact Material Beryllium Copper
Mating Cycles 100
Insertion Loss 0.15dB
Manufacturer Pack Quantity 10,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804214-MS-156HF
Ultra Librarian 3D Model Ultra Librarian MS-156HF CAD Model

Description

The 804214-MS-156HF is a coaxial switch connector with a 4mm plug diameter from Hirose Electric Co Ltd.

  • Connector Type: Receptacle Female Socket
  • Impedance: 50Ohm
  • Frequency Range: Up to 6GHz
  • Internal Switch: Yes
  • Fastening Type: Snap-on
  • Contact Termination: Solder
  • Body Material: Phosphor Bronze
  • Insertion Loss: 0.15dB
  • Center Contact Plating: Gold
  • Housing Color: Gold
  • Shield Termination: Solder
  • Dielectric Material: Polyamide (PA), Nylon 6T
  • Temperature Range: -40°C to 85°C
  • Mating Cycle: 100
