Same model may have multiple batches, images only for reference.

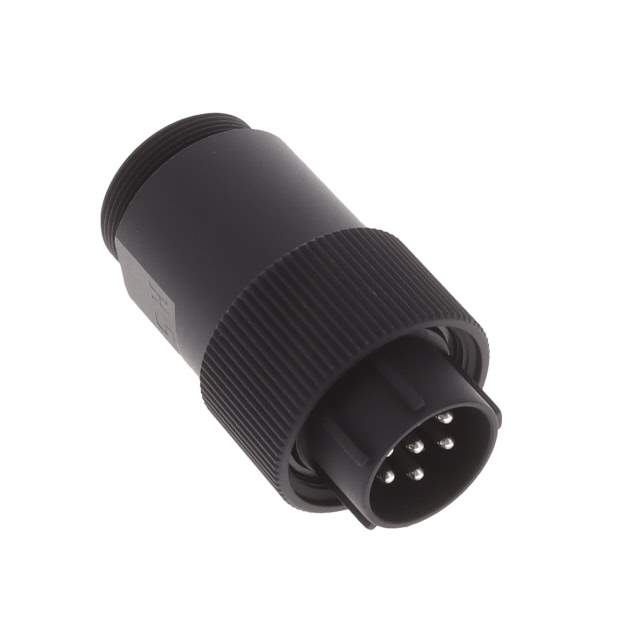

JR16WP-7P(31) Real Image
Same model may have multiple batches, images only for reference.

JR16WP-7P(31)

Part No JR16WP-7P(31)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN PLUG MALE 7P SILV SLDR CUP / 7 Position Circular Connector Plug, Male Pins Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Hirose Electric Co Ltd
Series JR-W
Package Bulk
Connector Type Plug, Male Pins
Number of Positions 7
Shell Size - Insert 16
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation Keyed
Primary Material Metal
Shell Material Aluminum Alloy
Shell Finish Black Chromium
Contact Finish - Mating Silver
Color Black
Ingress Protection IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Features Backshell, Coupling Nut
Shielding Unshielded
Current Rating (Amps) 10A
Voltage Rating 100VAC, 140VDC
Temperature Range - Operating -25°C ~ 85°C
Backshell Material, Plating Brass, Black Chrome
Contact Material Copper Alloy
Contact Finish Thickness - Mating 118.1µin (3.00µm)
Insert Material Phenol Formaldehyde (PF)
Applications Automotive, Industrial, Telecommunications
Base Product Number JR16
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1351629-JR16WP-7P(31)
Ultra Librarian 3D Model Ultra Librarian JR16WP-7P(31) CAD Model

Description

The JR16WP-7P(31) connector is part of the JR-W series of connectors from Hirose Electric Co Ltd. This connector has 7 positions and is designed for use in Circular Connector Assemblies.

  • Series: JR-W
  • Positions: 7
  • Application: Circular Connector Assemblies
  • Type: Plug, Male Pins
  • Termination: Solder Cup
  • Features: Threaded, Backshell, Coupling Nut
  • Contact Material: Copper Alloy
  • Voltage Rating: 100VAC, 140VDC
  • Protection: Dust Tight and Waterproof, IP67/IP68
  • Applications: Automotive, Industrial, and Telecommunications
  • Temperature Range: -25°C ~ 85°C
  • RoHS: Non-compliant
