Same model may have multiple batches, images only for reference.

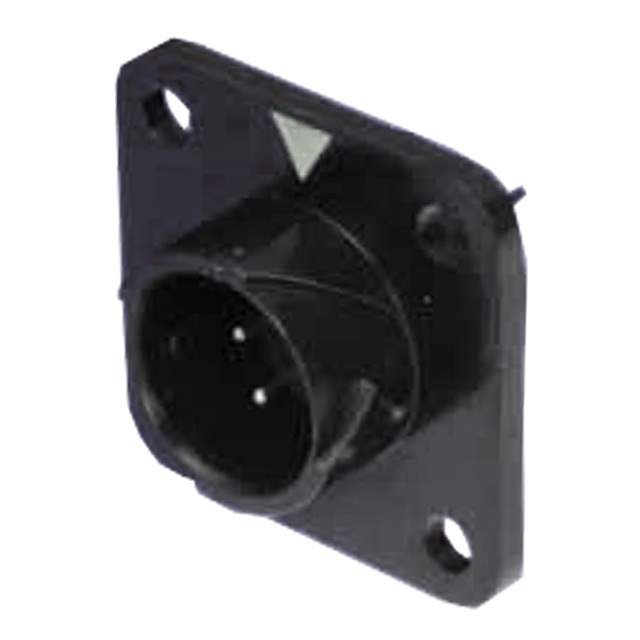

HR34B-12WRA-10P Real Image
Same model may have multiple batches, images only for reference.

HR34B-12WRA-10P

Part No HR34B-12WRA-10P
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 10P GOLD SLDR CUP / 10 (Power) Position Circular Connector Receptacle, Male Pins Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Hirose Electric Co Ltd
Series HR34B
Package Bag
Connector Type Receptacle, Male Pins
Number of Positions 10 (Power)
Shell Size - Insert 12
Mounting Type Panel Mount
Mounting Feature Flange
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation N (Normal)
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Chrome
Contact Finish - Mating Gold
Color Black
Ingress Protection IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof
Material Flammability Rating UL94 V-0
Shielding Unshielded
Current Rating (Amps) 3A
Voltage Rating 200VAC, 250VDC
Temperature Range - Operating -25°C ~ 125°C
Contact Material Copper Alloy
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insert Material Polyphenylene Sulfide (PPS)
Applications Telecommunications
Base Product Number HR34
Standard Package 70
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1337964-HR34B-12WRA-10P
Ultra Librarian 3D Model Ultra Librarian HR34B-12WRA-10P CAD Model

Description

The HR34B series connector assembly is a circular connector with 10 power positions from Hirose Electric Co Ltd.

  • Type: Receptacle
  • Contact Gender: Male Pins
  • Fastening Type: Bayonet Lock
  • Voltage Rating: 200VAC, 250VDC
  • Ingress Protection: IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof
  • Shielding: Unshielded
  • Flammability Rating: UL94 V-0
  • Shell Material: Zinc Alloy
  • Shell Finish: Chrome
  • Insert Material: Polyphenylene Sulfide (PPS)
  • Application: Telecommunications
  • Mounting Feature: Flange
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Mating Finish Thickness: 8.00µin (0.203µm)
  • Temperature Range: -25°C to 125°C
  • Current Rating: 3A
