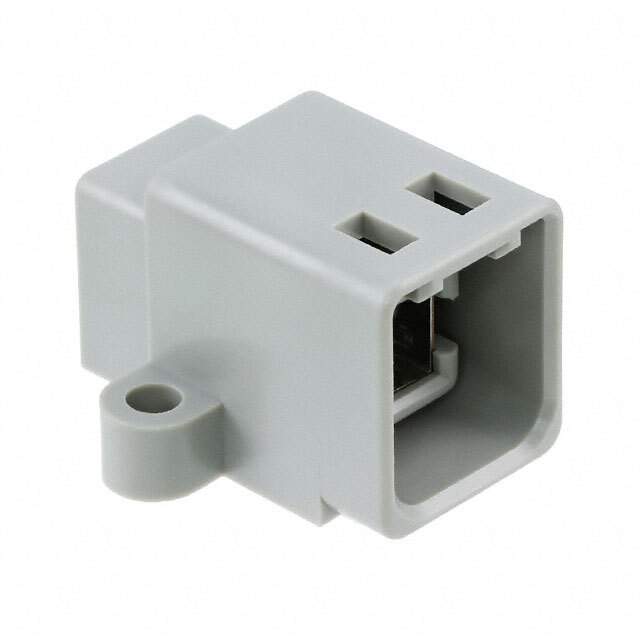

GT5-1P-DS(70) Real Image
Same model may have multiple batches, images only for reference.

GT5-1P-DS(70)

Part No GT5-1P-DS(70)
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF)
Description CONN COAX RCPT R/A 50 OHM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Connector Style Coaxial
Connector Type Receptacle, Male Pin
Contact Termination Solder
Impedance 50Ohm
Mounting Style Through Hole, Right Angle
Fastening Type Push-Pull
Frequency - Max 2GHz
Number of Ports 1
Features Mounting Flange
Housing Color Gray
Body Material Polybutylene Terephthalate (PBT)
Center Contact Plating Tin
Dielectric Material Polybutylene Terephthalate (PBT)
Temperature Range - Operating -30°C ~ 105°C
Center Contact Material Brass
Voltage Rating 250V
Mating Cycles 30
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804899-GT5-1P-DS(70)
Ultra Librarian 3D Model Ultra Librarian GT5-1P-DS(70) CAD Model

Description

The Hirose Electric Co Ltd GT5-1P-DS(70) is a coaxial connector type product that is designed for through-hole, right-angle mounting.

  • Mounting: Through-hole, right-angle
  • Mounting Flange: Yes
  • Fastening Type: Push-pull
  • Manufacturer: Hirose Electric Co Ltd
  • Win Source Part Number: 804899-GT5-1P-DS(70)
  • Voltage Rating: 250V
  • Frequency Range: Up to 2GHz
