Same model may have multiple batches, images only for reference.

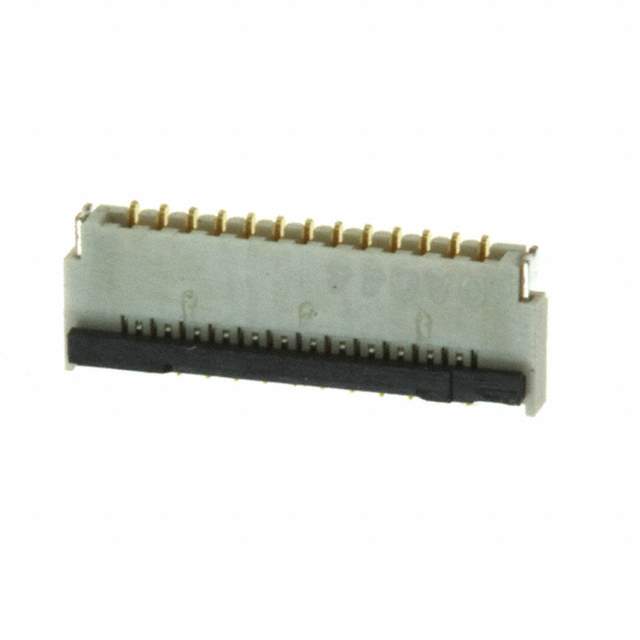

FH39-25S-0.3SHW(10) Real Image
Same model may have multiple batches, images only for reference.

FH39-25S-0.3SHW(10)

Part No FH39-25S-0.3SHW(10)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 25POS 0.30MM R/A
Datasheet
FH39-25S-0.3SHW(10) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 25
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.044" (1.10mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A
Contact Finish Thickness 19.7μin (0.50μm)
Housing Color Beige
Actuator Color Black
Mating Cycles 10
Win Source Part Number 1038818-FH39-25S-0.3SHW(10)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FH39-25S-0.3SHW(10) CAD Model

Description

The Hirose Electric Co Ltd FH39-25S-0.3SHW(10) is a zero insertion force (ZIF) connector with contacts on the top and bottom.

  • Manufacturer: Hirose Electric Co Ltd
  • Connector Type: ZIF
  • Contact Position: Top and Bottom
  • Positions: 25
  • Pitch: 0.012 inches (0.30mm)
  • Mounting Type: Surface Mount
  • Contact Finish: Gold
  • Contact Finish Thickness: 19.7μin (0.50μm)
  • RoHS Compliant: Yes
  • Standard Package: 10 units
  • Cable End Type: Tapered
  • Mated Stacking Heights: 0.20mm
