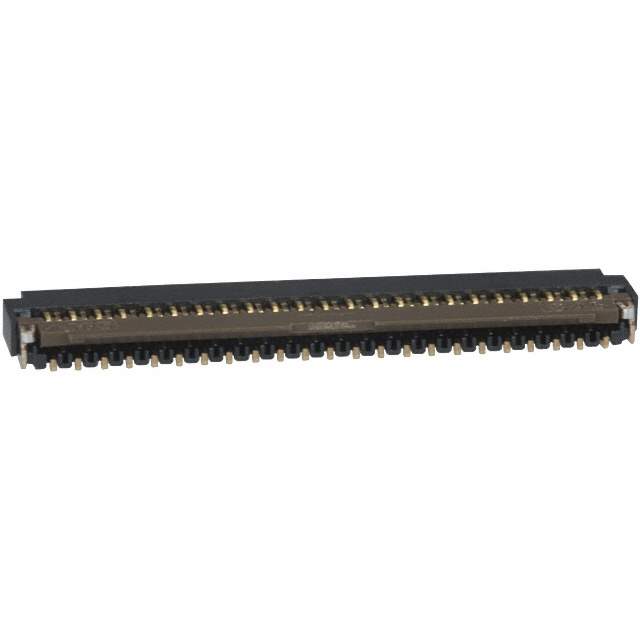

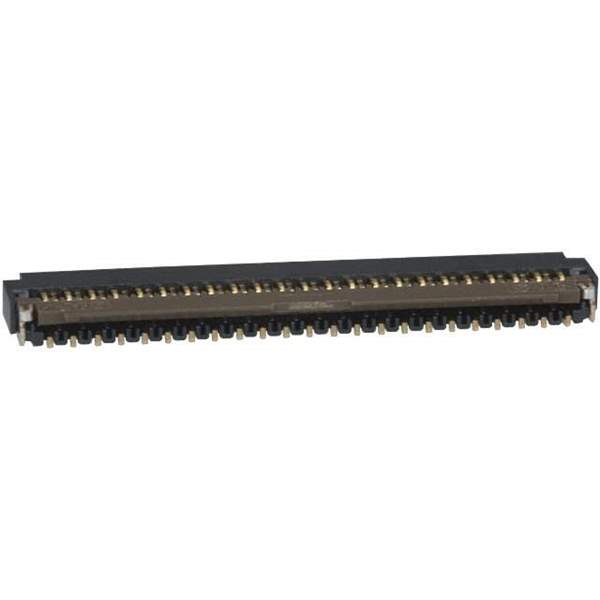

FH26-45S-0.3SHW(10) Real Image
Same model may have multiple batches, images only for reference.

FH26-45S-0.3SHW(10)

Part No FH26-45S-0.3SHW(10)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 45POS 0.30MM R/A / 45 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH26
Package Tape & Reel (TR)
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 45
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 580-0211-5-10
Standard Package 5,000
Win Source Part Number 971756-FH26-45S-0.3SHW(10)
Ultra Librarian 3D Model Ultra Librarian FH26-45S-0.3SHW(10) CAD Model

Description

The Hirose Electric Co Ltd FH26-45S-0.3SHW(10) is a 45-position FFC, FPC (Flat Flexible) Connector that features zero insertion force (ZIF) and is soldered.

  • Series: FH26
  • Family: Connectors
  • Packaging: Tape & Reel (TR)
  • Mounting: Surface Mount Technology
  • ECCN Code: EAR99
  • Popularity: Medium
  • Current Rating (Amps): 0.2A
  • HTSUS Code: 8536.69.4051
  • Status: Obsolete
  • Standard Package: 5000
