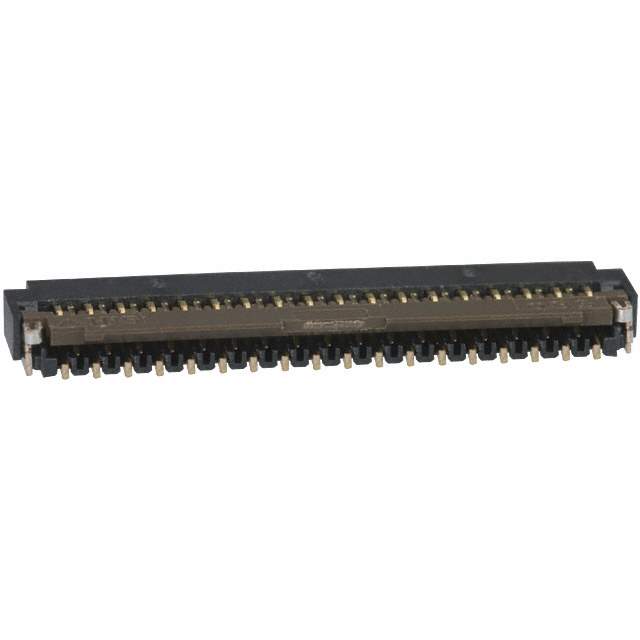

The Hirose Electric Co Ltd FH26-35S-0.3SHW(10) connector is a surface mount, right angle type connector with a pitch of 0.012" (0.30mm) and 35 number of positions. Hirose Electric Co Ltd FH26-35S-0.3SHW(10) connector is a surface mount, right angle type connector with a pitch of 0.012" (0.30mm) and 35 number of positions.

• Mounting: surface mount, right angle
• Pitch: 0.012" (0.30mm)
• Positions: 35
• Feature: zero insertion force (ZIF)
• Termination: solder
• Voltage Rating: 30V
• Current Rating: 0.2A
• Height Above Board: 0.039" (1.00mm)
• Type: FPC flat flex
• Housing Material: liquid crystal polymer (LCP)
• Actuator Material: polyamide (PA), nylon
• Housing Color: black
• Actuator Color: brown
• Flammability Rating: UL94 V-0
• Mating Cycles: 10
• Supply and Demand Status: balance
