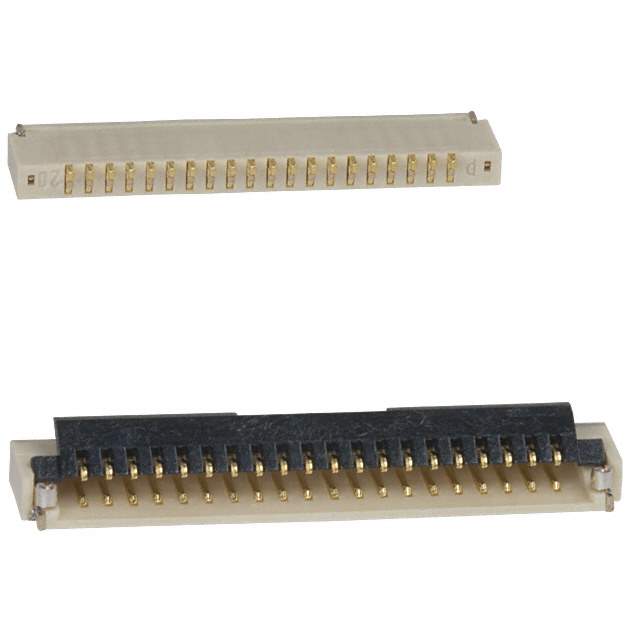

FH19SC-20S-0.5SH(09) Real Image
Same model may have multiple batches, images only for reference.

FH19SC-20S-0.5SH(09)

Part No FH19SC-20S-0.5SH(09)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC BOTTOM 20POS 0.50MM R/A
Datasheet
FH19SC-20S-0.5SH(09) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features 20 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series FH19SC
Package Reel - TR
Operating Temperature Range -55°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name FH19
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number H125835DKR, H125835CT, H125835TR, FH19SC-20S-0.5SH(09)-ND, 580-0502-8-09
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871828-FH19SC-20S-0.5SH(09)
Ultra Librarian 3D Model Ultra Librarian FH19SC-20S-0.5SH(09) CAD Model

Description

The Hirose Electric Co Ltd electronic component is a connector that is designed for use with 20 position FFC and FPC connectors.

  • Positions: 20
  • Connector Type: FFC, FPC
  • Win Source Part Number: 871828-FH19SC-20S-0.5SH(09)
  • Series: FH19SC
  • Mounting: Surface Mount, Right Angle
  • Package: Reel
  • Supply and Demand Status: Limited
  • Quantity: 5000
  • Estimated Production Lead Time: 25 weeks
