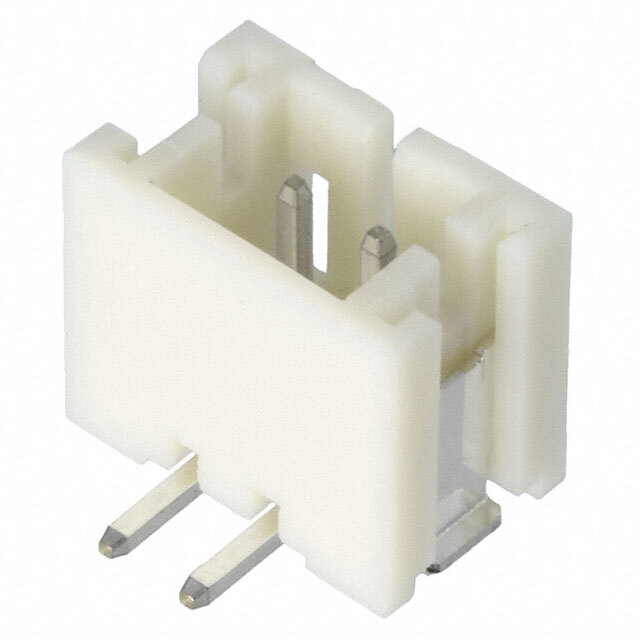

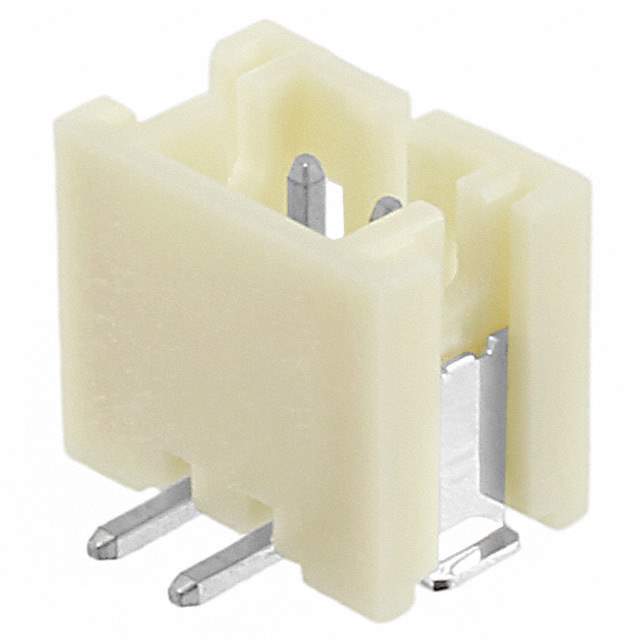

B2B-PH-SM4-TB(LF)(SN) JST Sales America Inc. B2B-PH-SM4-TB(LF)(SN) Real Image B2B-PH-SM4-TB(LF)(SN) label picture
Same model may have multiple batches, images only for reference.

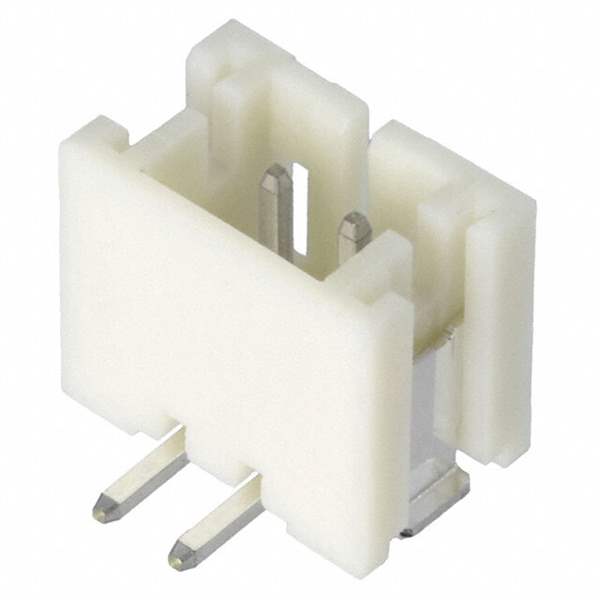

B2B-PH-SM4-TB(LF)(SN) JST Sales America Inc. B2B-PH-SM4-TB(LF)(SN) Real Image B2B-PH-SM4-TB(LF)(SN) label picture
B2B-PH-SM4-TB(LF)(SN) JST Sales America Inc. B2B-PH-SM4-TB(LF)(SN) Real Image B2B-PH-SM4-TB(LF)(SN) label picture
Same model may have multiple batches, images only for reference.

B2B-PH-SM4-TB(LF)(SN)

Part No B2B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PH TOP 2POS 2MM SMD
Datasheet
B2B-PH-SM4-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 8.6mm
Win Source Part Number 1021436-B2B-PH-SM4-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B2B-PH-SM4-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1021436-B2B-PH-SM4-TB(LF)(SN) header connector is a 2 position male pin connector with a detent lock fastening type and a shrouded-4 wall design.

  • Number of Positions: 2
  • Gender: Male
  • Fastening Type: Detent Lock
  • Design: Shrouded-4 Wall
  • Insulation Material: Polyamide (PA6T), Nylon 6T
  • Color: Natural
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Style: Board to Cable/Wire
  • Pitch-Mating: 0.079" (2.00mm)
  • Contact Length-Mating: 0.130" (3.30mm)
  • Temperature Range: -25°C to 85°C
  • Flammability Rating: UL94 V-0
  • Mounting Type: SMD (SMT)
  • Mated Stacking Heights: 8.6mm
