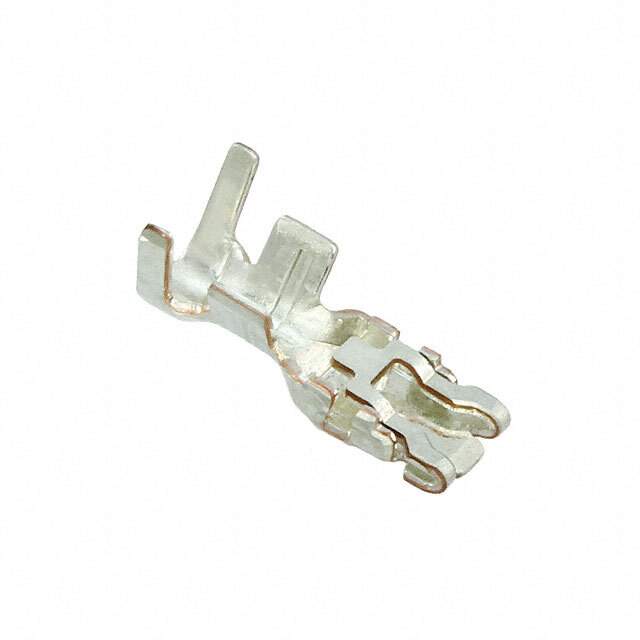

Same model may have multiple batches, images only for reference.

DF59M-2224PCF

Name: DF59M-2224PCF
Brand: Hirose Electric Co Ltd
SKU: 1339570
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF59M-2224PCF
Manufacturer	Hirose Electric Co Ltd
Catalog	Solid State Lighting Connectors
Description	CONN SSL PLG CONT 22-24AWG CRIMP / 22-24 AWG SSL Contact, Plug Crimp Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Solid State Lighting Connectors - Solid State Lighting Connector Contacts
Mfr	Hirose Electric Co Ltd
Series	DF59M
Package	Tape & Reel (TR) Cut Tape (CT)
Style	Board to Cable/Wire
Connector Type	Contact, Plug
Number of Positions	1
Mounting Type	Free Hanging (In-Line)
Termination	Crimp
Wire Gauge	22-24 AWG
Contact Finish	Tin
Contact Material	Copper Alloy
Temperature Range - Operating	-40°C ~ 105°C
Voltage Rating	300 V
Current Rating (Amps)	6A
Mating Cycles	20
Base Product Number	DF59
Standard Package	15,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1339570-DF59M-2224PCF
Ultra Librarian 3D Model	Ultra Librarian DF59M-2224PCF CAD Model

Alternative Products

Description

The DF59M-2224PCF series of connectors from Hirose Electric Co Ltd are solid-state lighting connector contacts designed for board-to-cable/wire applications.

Manufacturer: Hirose Electric Co Ltd
Series: DF59M
Connector Type: Solid-State Lighting Connector Contacts
Application: Board-to-Cable/Wire
Package: Tape and Reel (TR) / Cut-Tape (CT)
Standard Package Quantity: 15,000
Wire Gauge: 22-24 AWG
Current Rating: 6A
Contact Type: Plug
Termination Type: Crimp
Voltage Rating: 300V
Contact Finish: Tin
Style: Board-to-Cable/Wire
Pitch: Varies by Wire Gauge
Mounting Type: Free Hanging (In-Line)
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.8000
Base Product Number: DF59
