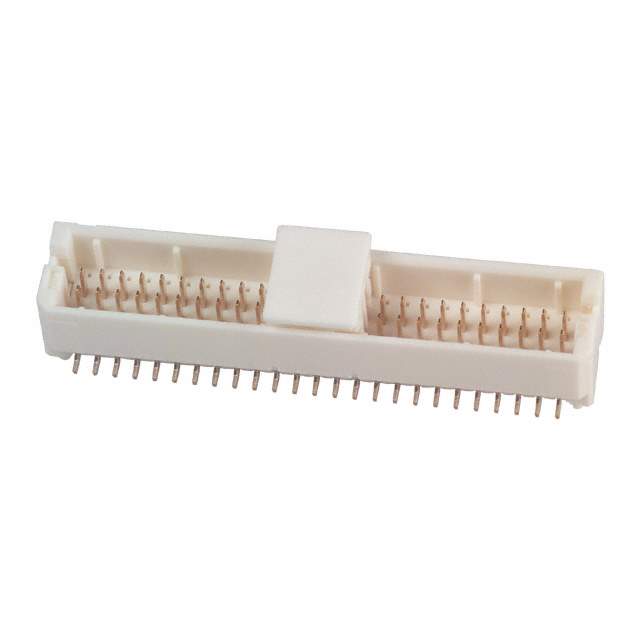

Same model may have multiple batches, images only for reference.

DF20G-50DP-1V(56)

Name: DF20G-50DP-1V(56)
Brand: Hirose Electric Co Ltd
SKU: 812877
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF20G-50DP-1V(56)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 50POS 1MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Hirose Electric Co Ltd
Packaging	Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	50
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Insulation Height	0.181" (4.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide, Pick and Place, Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	1A
Voltage Rating	100V
Mated Stacking Heights	5.8mm
Manufacturer Pack Quantity	1,000
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	812880-DF20G-50DP-1V(56)
Ultra Librarian 3D Model	Ultra Librarian DF20G-50DP-1V(56) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd 812880-DF20G-50DP-1V(56) is a header connector with 50 male pins.

Pins: 50
Board Guide: Yes
Connection Type: Board to Cable/Wire
Contact Material: Phosphor Bronze
Voltage Rating: 100V
Pitch-Mating: 0.039" (1.00mm)
Contact Finish-Mating: Gold
Shrouding: 4 Walls
Row Spacing-Mating: 0.039" (1.00mm)
Temperature Range: -35°C to 85°C
Supply and Demand Status: Limited
Packaging: Reel
Manufacturer Pack Quantity: 1,000
