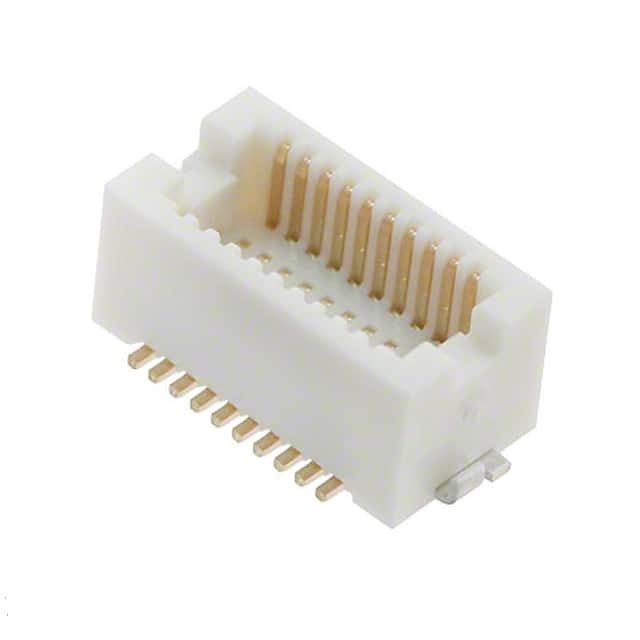

DF12(3.0)-20DP-0.5V(86)

Name: DF12(3.0)-20DP-0.5V(86)
Brand: Hirose Electric Co Ltd
SKU: 849514
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

Part No	DF12(3.0)-20DP-0.5V(86)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HDR 20POS SMD GOLD / 20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet	DF12(3.0)-20DP-0.5V(86) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	DF12
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Header, Outer Shroud Contacts
Number of Positions	20
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide, Solder Retention
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Mated Stacking Heights	3mm
Height Above Board	0.091" (2.30mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	849514-DF12(3.0)-20DP-0.5V(86)
Ultra Librarian 3D Model	Ultra Librarian DF12(3.0)-20DP-0.5V(86) CAD Model

Alternative Products

Description

The DF12 series rectangular connector array is a reliable and versatile electronic component designed for board-to-board connections in electronic devices.

Pitch: 0.020" (0.50mm)
Positions: 20
Features: Board Guide, Solder Retention
Connector Type: Header
Contacts: Outer Shroud
Rows: 2
Contact Termination: Gold
Mounting Type: Surface Mount
Standard Package: 1,000 pcs
Height Above Board: 0.091" (2.30mm)
Product Status: Obsolete
