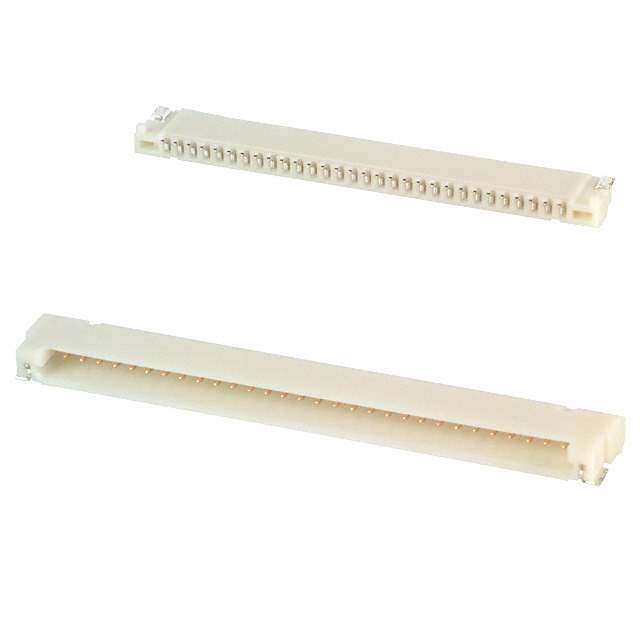

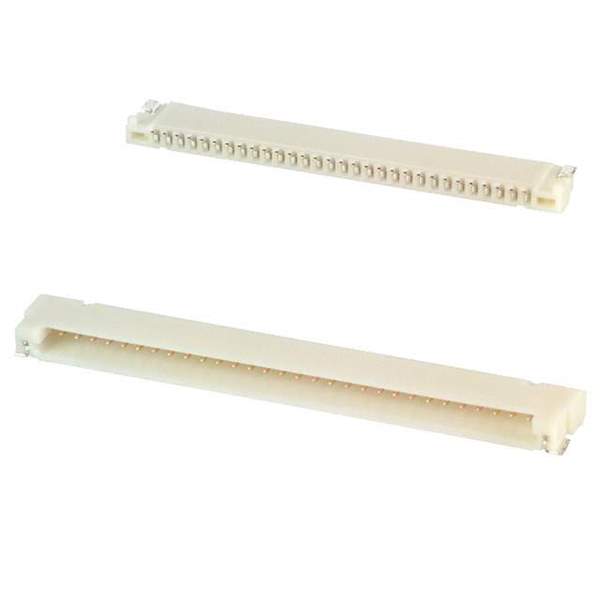

DF14-30P-1.25H(56) Real Image
Same model may have multiple batches, images only for reference.

DF14-30P-1.25H(56)

Part No DF14-30P-1.25H(56)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER SMD R/A 30POS 1.25MM / Connector Header Surface Mount, Right Angle 30 position 0.049" (1.25mm)
Datasheet
DF14-30P-1.25H(56) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF14
Package Tape & Reel (TR)
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 30
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.086" (2.20mm)
Insulation Height 0.098" (2.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.90µin (0.099µm)
Contact Finish - Post Tin-Copper
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Contact Finish Thickness - Post 39.4µin (1.00µm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 538-0020-1-56
Standard Package 1,000
Win Source Part Number 1008029-DF14-30P-1.25H(56)
Ultra Librarian 3D Model Ultra Librarian DF14-30P-1.25H(56) CAD Model

Description

The DF14 series is a range of rectangular connectors used for headers and male pins. The Hirose Electric Co Ltd is the manufacturer.

  • Connector Type: header
  • Contact Type: male pin
  • Positions Loaded: 30
  • Rows: single row
  • Termination: solder
  • Fastening Type: push-pull
  • Contact Material: brass
  • Voltage Rating: 150V
  • Material Flammability Rating: UL94 V-0
  • Board Guide: yes
  • Insulation Material: polyamide (PA), nylon
  • Pitch-Mating: 0.049" (1.25mm)
  • Contact Finish-Mating: gold
  • Mounting Type: surface mount, right-angle
  • Temperature Range: -35°C ~ 85°C
  • Current Rating: 1A
