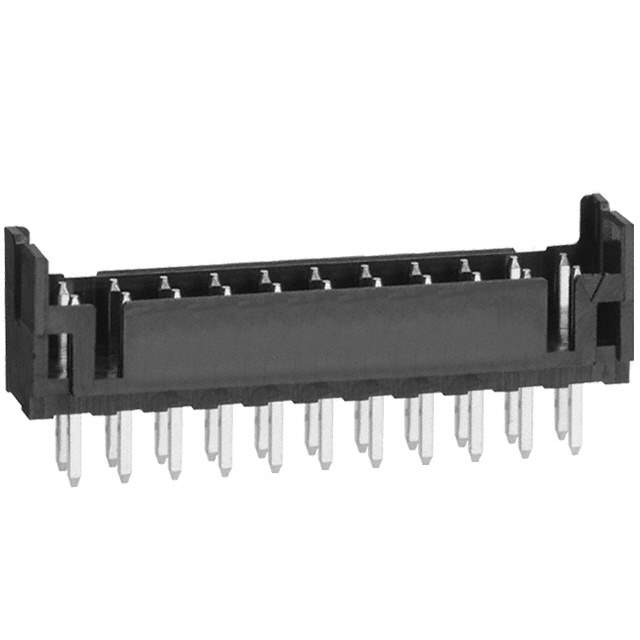

DF11-22DP-2DSA(24)

Part No DF11-22DP-2DSA(24)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors
Description CONN HEADER VERT 22POS 2MM / Connector Header Through Hole 22 position 0.079" (2.00mm)
Datasheet
DF11-22DP-2DSA(24) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF11
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 22
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.118" (3.00mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.299" (7.60mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2A
Voltage Rating 250V
Mated Stacking Heights 7.55, 7.8mm, 8.9mm
Base Product Number DF11
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names *DF11-22DP-2DSA(24),DF1122DP2DSA24,543-0526-6-24,H10238
Standard Package 20
Win Source Part Number 1146815-DF11-22DP-2DSA(24)
Ultra Librarian 3D Model Ultra Librarian DF11-22DP-2DSA(24) CAD Model

Description

The DF11 series features a 22 position header connector with male pins from Hirose Electric Co Ltd.

  • Category: Connectors, Interconnects
  • Packaging: Tube
  • Number of Positions Loaded: All
  • Number of Rows: Two
  • Termination Style: Soldered
  • Fastening Type: Detent Lock
  • Contact Material: Brass
  • Voltage Rating: 250V
  • Mating Heights: 7.55, 7.8mm, and 8.9mm
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: Polyamide (PA), Nylon
  • Connector Style: Board to Board or Cable
  • Pitch-Mating: 0.079" (2.00mm)
  • Contact Finish-Mating: Tin
  • Contact Finish Thickness-Mating: 39.4µin (1.00µm)
  • Contact Finish-Post: Tin
  • Insulation Color: Black
  • Mounting Type: Through Hole
  • Shrouded: 4 Wall
  • Row Spacing-Mating: 0.079" (2.00mm)
  • Contact Length-Post: 0.118" (3.00mm)
  • Overall Contact Length: 0.299" (7.60mm)
  • Insulation Height: 0.260" (6.60mm)
  • Contact Shape: Square
  • Operating Temperature Range: -30°C ~ 85°C
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4040
