Same model may have multiple batches, images only for reference.

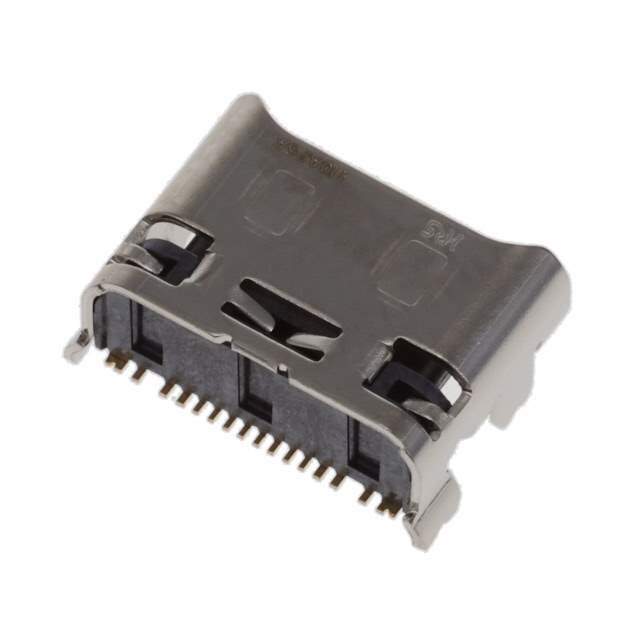

CX90B-16P Real Image
Same model may have multiple batches, images only for reference.

CX90B-16P

Part No CX90B-16P
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCP USB3.2 TYP C 24P SMD RA / USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle; Through Hole
Datasheet
CX90B-16P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Hirose Electric Co Ltd
Series CX
Package Tape & Reel
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24 (16+8 Dummy)
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal, Reversible
Termination Solder
Temperature Range - Operating -40°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 5A
Voltage - Rated 20VAC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number CX90B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 26-CX90B-16PCT,26-CX90B-16PTR,26-CX90B-16PDKR
Standard Package 1,500
Win Source Part Number 1127782-CX90B-16P
Ultra Librarian 3D Model Ultra Librarian CX90B-16P CAD Model

Description

The CX90B-16P from Hirose Electric Co Ltd is a USB-C connector that is designed to be used in various electronic devices.

  • Contacts: 24 (16 real, 8 dummy)
  • Shielded: Yes
  • Material Flammability Rating: UL94 V-0
