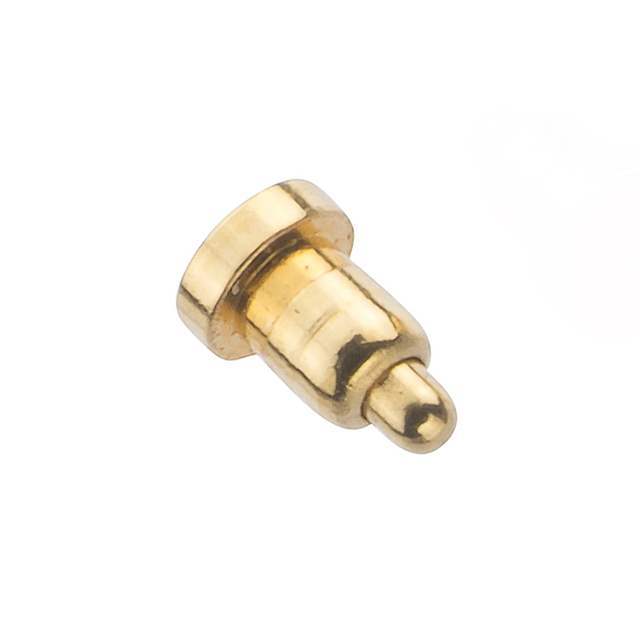

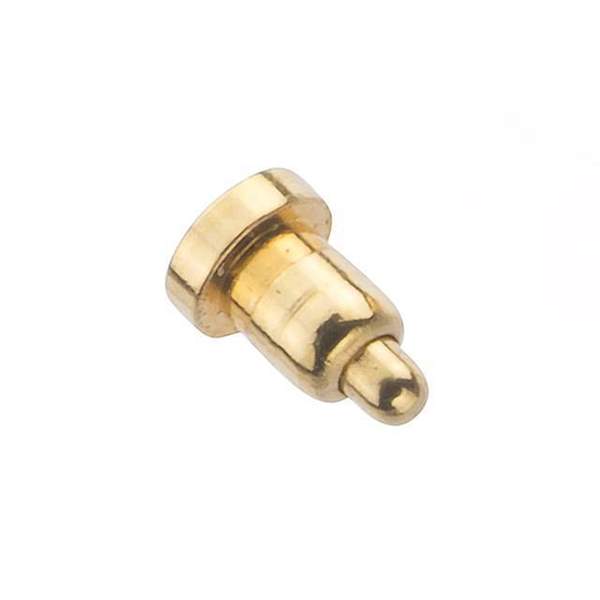

P70-5000045R

Part No P70-5000045R
Manufacturer Harwin Inc.
Catalog Contacts, Spring Loaded and Pressure
Description CONTACT SPRING LOADED SMD GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206743-P70-5000045R
Manufacturer Harwin Inc.
Category Connectors, Interconnects -Contacts -Contacts, Spring Loaded (Pogo Pins), and Pressure
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Contact Type Sleeve & Plunger (Pogo Pins)
Mounting Type Surface Mount
Maximum Working Height 0.079" (2.00mm)
Recommended Working Height 0.075" (1.90mm)
Pad Layout Dimension Circular - 0.067" (1.70mm)
Plunger Size 0.024" (0.60mm) Dia
Ultra Librarian 3D Model Ultra Librarian P70-5000045R CAD Model

Description

P70-5000045R from Harwin Inc. is a spring-loaded/pressure contact designed for applications where reliable electrical contact is needed under repeated mating, vibration, movement, or tolerance variation. Components in this category are commonly considered for battery connections, docking interfaces, test fixtures, compact board-to-board contact points, and serviceable embedded electronics where fixed contacts may be less practical. Harwin is widely recognized for interconnect solutions used in demanding electronic designs, which positions this part as a useful option for engineers seeking durable contact performance in space-constrained assemblies. The current lifecycle status for P70-5000045R is information not available, so teams should confirm long-term availability directly with Harwin or authorized distribution before locking it into new designs. RoHS compliance information is also not available from the provided input; engineers should verify the latest compliance declarations, material content data, and datasheet details through official manufacturer sources before procurement.
