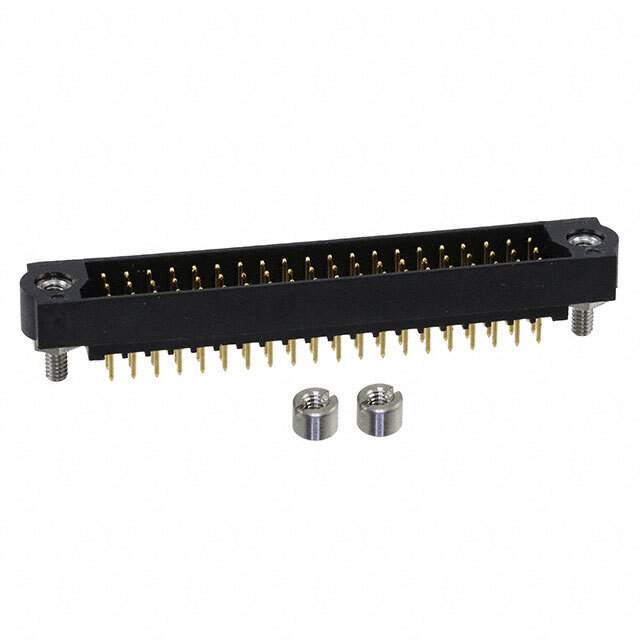

M83-LMT1M2N60-0000-000 Real Image
Same model may have multiple batches, images only for reference.

M83-LMT1M2N60-0000-000

Part No M83-LMT1M2N60-0000-000
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description 3 ROW M/T M VERT J/S 60 WAY
Datasheet
M83-LMT1M2N60-0000-000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Harwin Inc.
Packaging Tray
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 60
Number of Positions Loaded All
Number of Rows 3
Row Spacing - Mating 0.079" (2.00mm)
Mounting Through Hole
Termination Solder
Fastening Type Threaded
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.240" (6.10mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 29.5μin (0.75μm)
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Features Mating Flange, Mounting Flange, Mounting Hardware
Temperature Range - Operating -55°C to 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 2.2A per Contact
Voltage Rating 120V
Mated Stacking Heights 10.65mm, 12.85mm
Win Source Part Number 1065070-M83-LMT1M2N60-0000-000
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian M83-LMT1M2N60-0000-000 CAD Model

Description

The M83-LMT1M2N60-0000-000 is a 60 position header connector from Harwin Inc.

  • Voltage Rating: 120V
  • Current Rating: 2.2A per contact
  • Mounting: Through hole
  • Shrouding: Shrouded - 4 wall
  • Pitch - Mating: 0.079" (2.00mm)
  • Row Spacing - Mating: 0.079" (2.00mm)
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 29.5μin (0.75μm)
  • Contact Length - Post: 0.126" (3.20mm)
  • Insulation Height: 0.240" (6.10mm)
  • Insulation Material: Polyphenylene sulfide (PPS), glass filled
  • Contact Type: Male pin
  • Style: Board to board or cable
  • ECCN: EAR99
  • Material Flammability Rating: UL94 V-0
