Same model may have multiple batches, images only for reference.

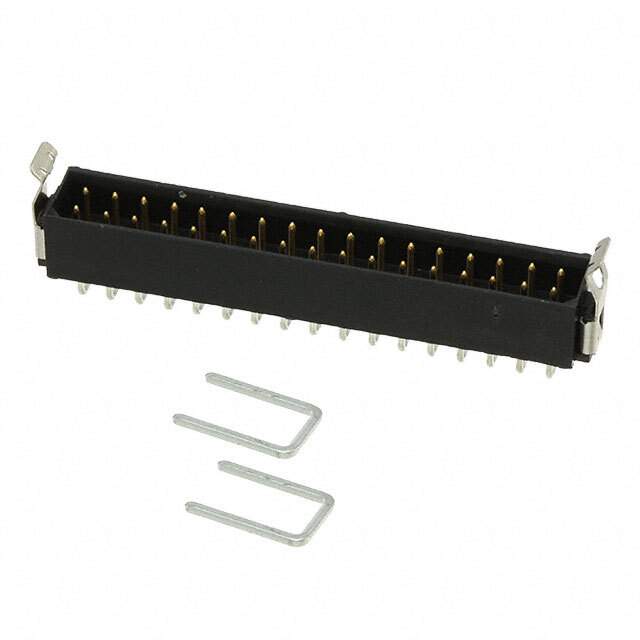

M80-8663422 Real Image
Same model may have multiple batches, images only for reference.

M80-8663422

Part No M80-8663422
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 34POS 2MM
Datasheet
M80-8663422 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 17 Weeks
Features Connector Header Through Hole, Right Angle 34 position 0.079" (2.00mm)
Manufacturer Harwin Inc.
Series Datamate L-Tek
Package Tube
Operating Temperature Range -55°C ~ 125°C
Mounting Through Hole, Right Angle
Family Name M80-866
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 952-2590, , M80-8663422-ND
Quantity per package 6
Popularity High
Supply and Demand Status Balance
Win Source Part Number 924994-M80-8663422
Ultra Librarian 3D Model Ultra Librarian M80-8663422 CAD Model

Description

The Datamate L-Tek series connector header from Harwin Inc. is a high-quality electronic component that is built to last.

  • Temperature Range: -55°C to 125°C
  • Configuration: Right angle 34 position 0.079" (2.00mm) connector header through hole
  • Family Name: M80-866
  • ECCN: EAR99
  • Popularity: High
  • Supply and Demand: Balance
  • Connectors per Package: 6
  • Estimated Production Lead Time: 17 weeks
