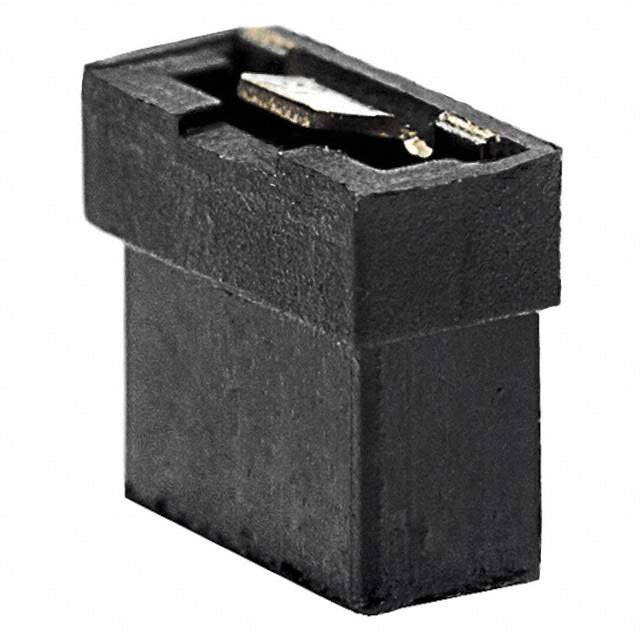

M22-1900005

Name: M22-1900005
Brand: Harwin Inc.
SKU: 1285225
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M22-1900005
Manufacturer	Harwin Inc.
Catalog	Shunts, Jumpers
Datasheet	M22-1900005 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Shunts, Jumpers
Mfr	Harwin Inc.
Series	M22
Package	Bulk
Type	Open Top
Gender	Female Sockets
Number of Positions or Pins (Grid)	2 (1 x 2)
Pitch	0.079" (2.00mm)
Height	0.138" (3.50mm)
Contact Finish	Gold
Contact Finish Thickness	5.11µin (0.130µm)
Color	Black
Material Flammability Rating	UL94 V-0
Housing Material	Polyester, Glass Filled
Voltage Rating	250V
Current Rating (Amps)	2A
Base Product Number	M22-190
Other Names	M22F1900005,952-1305,M221900005
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8538.90.8180
Win Source Part Number	1285225-M22-1900005
Ultra Librarian 3D Model	Ultra Librarian M22-1900005 CAD Model

Description

The M22 Open Top connector is a female socket connector designed for use in electronic applications.

Type: Female Socket Connector
Pitch: 0.079 inches (2.00 mm)
Voltage Rating: 250V
Current Rating: 2A
Housing Material: Polyester and Glass-Filled
Flammability Rating: UL94 V-0
Contact Finish: Gold
Contact Finish Thickness: 5.11µin (0.130µm)
Package: Bulk
Positions/Pins (Grid): 2
Rows: 1
Height: 0.138 inches (3.50mm)
ECCN: EAR99
REACH: Unaffected
