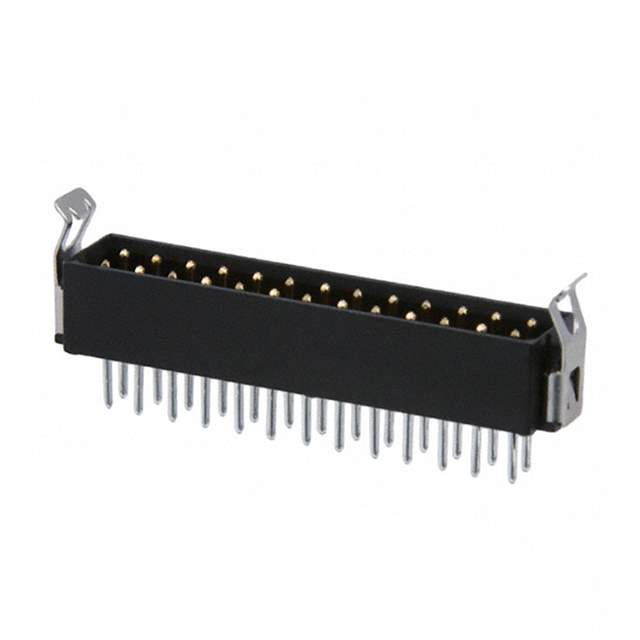

M80-8532642

Name: M80-8532642
Brand: Harwin Inc.
SKU: 1332444
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M80-8532642
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 26POS 2MM / Connector Header Through Hole 26 position 0.079" (2.00mm)
Datasheet	M80-8532642 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Harwin Inc.
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	26
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Latch Lock
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.219" (5.56mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A per Contact
Voltage Rating	800V
Mated Stacking Heights	7.23mm, 7.85mm, 10.2mm, 13.51mm
Contact Finish Thickness - Post	118.1µin (3.00µm)
Base Product Number	M80-853
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	M808532642,952-1103-5
Standard Package	8
Win Source Part Number	1332444-M80-8532642
Ultra Librarian 3D Model	Ultra Librarian M80-8532642 CAD Model

Alternative Products

Description

The Harwin Inc. 1332444-M80-8532642 is a tube-packaged, through-hole-mountable, 26-position, male pin connector with two rows.

Manufacturer: Harwin Inc.
Packaging: Tube
Mounting Type: Through-Hole
Positions: 26
Contact Gender: Male Pin
Rows: 2
Fastening Type: Latch Lock
Current Rating: 2.2A per contact
Voltage Rating: 800V
Material Flammability Rating: UL94 V-0
Insulation Material: Polyphenylene Sulfide (PPS) and Glass-Filled
Pitch-Mating: 0.079” (2.00mm)
Row Spacing-Mating: 0.079” (2.00mm)
Contact Finish-Mating: Gold
Contact Finish-Post: Tin
Insulation Color: Black
Contact Shape: Circular
MSL Level: 1 (Unlimited)
HTSUS Code: 8536.69.4040
