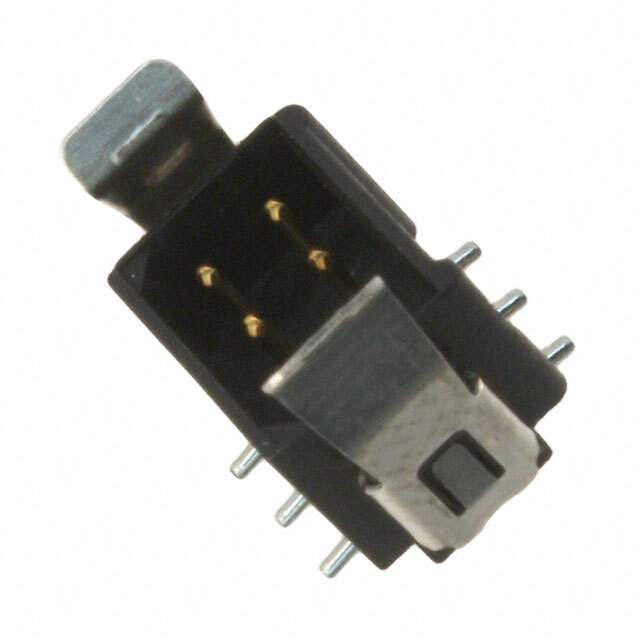

M80-8270642

Get a Quote

Part No	M80-8270642
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 6POS 2MM / Connector Header Surface Mount 6 position 0.079" (2.00mm)
Datasheet	M80-8270642 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Datamate L-Tek
Package	Tube
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Friction Lock
Insulation Height	0.205" (5.20mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS) , Glass Filled
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A
Voltage Rating	800V
Mated Stacking Heights	7.85mm, 8.45mm, 10.5mm, 14.25mm
Contact Finish Thickness - Post	118.1µin (3.00µm)
Standard Package	26
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350705-M80-8270642
Ultra Librarian 3D Model	Ultra Librarian M80-8270642 CAD Model

Description

The Harwin Inc. Datamate L-Tek series connector is a board-to-board or cable connector with a pitch of 0.079" (2.00mm).

Series: Datamate L-Tek
Connector Type: Board-to-Board/Cable
Pitch: 0.079" (2.00mm)
Shroud: 4-Wall
Fastening Type: Friction Lock
Rows: Two
Positions: Six
Type: Male Pin Header
Contact Material: Phosphor Bronze
Contact Finish: Gold
Contact Finish Thickness: 29.5µin (0.75µm)
Voltage Rating: 800V
Current Rating: 2.2A
Operating Temperature: -55°C to 125°C
