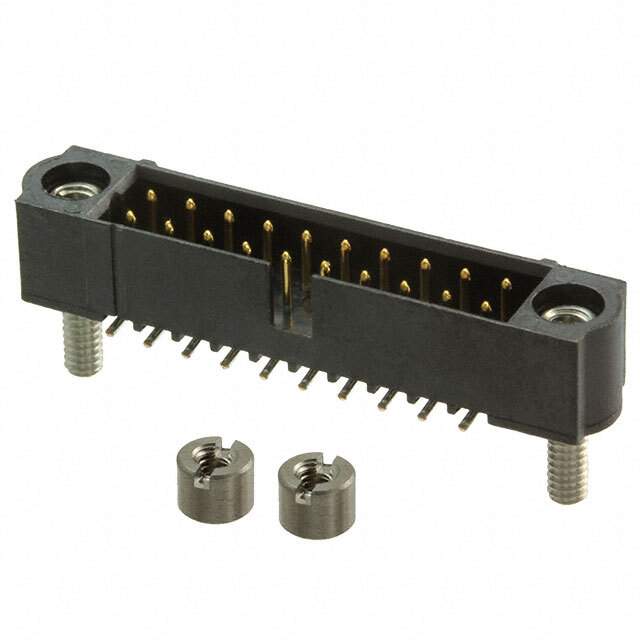

Same model may have multiple batches, images only for reference.

M80-5132042

Name: M80-5132042
Brand: Harwin Inc.
SKU: 1332945
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M80-5132042
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 2MM / Connector Header Surface Mount 20 position 0.079" (2.00mm)
Datasheet	M80-5132042 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Harwin Inc.
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting	Surface Mount
Termination	Solder
Fastening Type	Threaded
Insulation Height	0.234" (5.95mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Features	Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A
Voltage Rating	800V
Mated Stacking Heights	7.55mm, 7.95mm, 10.1mm, 11.1mm, 13.65mm, 15.1mm
Contact Finish Thickness - Post	118.1µin (3.00µm)
Base Product Number	M80-513
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	952-2919,M80-5132042-ND
Standard Package	8
Win Source Part Number	1332945-M80-5132042
Ultra Librarian 3D Model	Ultra Librarian M80-5132042 CAD Model

Alternative Products

Description

Harwin Inc.'s rectangular connector is commonly used in board to board or cable applications.

Connector Type: Header
Contact Type: Male Pins
Positions: 20
Positions Loaded: All
Rows: Two
Termination: Solder
Fastening Type: Threaded
Contact Material: Phosphor Bronze
Voltage Rating: 800V
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
