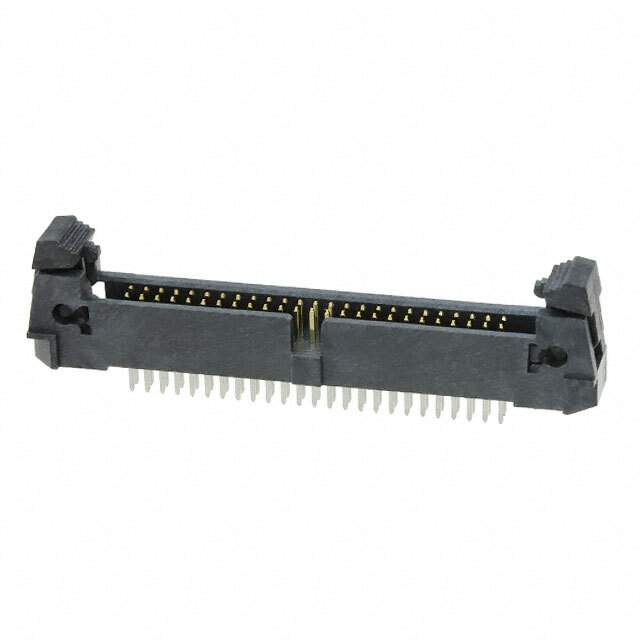

Part No M50-3552542
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 50POS 1.27MM / Connector Header Through Hole 50 position 0.050" (1.27mm)
Datasheet
M50-3552542 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Harwin Inc.
Series Archer M50
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 50
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.107" (2.71mm)
Overall Contact Length 0.351" (8.92mm)
Insulation Height 0.325" (8.25mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP) , Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1.75A per Contact
Mated Stacking Heights 11.6mm
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number M50-355
Standard Package 12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339953-M50-3552542
Ultra Librarian 3D Model Ultra Librarian M50-3552542 CAD Model

Description

The Archer M50 series of connectors from Harwin Inc. is a versatile and reliable solution for board-to-board or cable connections.

  • Connector: Header
  • Positions: 50
  • Keying Slot: Yes
  • Latch Lock/Eject Hooks: Yes
  • Rows: 2
  • All Positions Loaded: Yes
  • Contact Material: Brass
  • Mating Contact Finish: Gold, Flash Finish Thickness
  • Post Contact Finish: Tin, 100.0µin Finish Thickness
  • Insulation Material: Liquid Crystal Polymer (LCP) and Glass Filled
  • Insulation Color: Black
  • Mounting Type: Through Hole
  • Shrouding: Shrouded with 4 Walls
  • Pitch-Mating: 0.050" (1.27mm)
  • Row Spacing-Mating: 0.050" (1.27mm)
  • Contact Length-Post: 0.107" (2.71mm)
  • Overall Contact Length: 0.351" (8.92mm)
  • Insulation Height: 0.325" (8.25mm)
  • Contact Shape: Square
  • Operating Temperature: -55°C to 125°C
