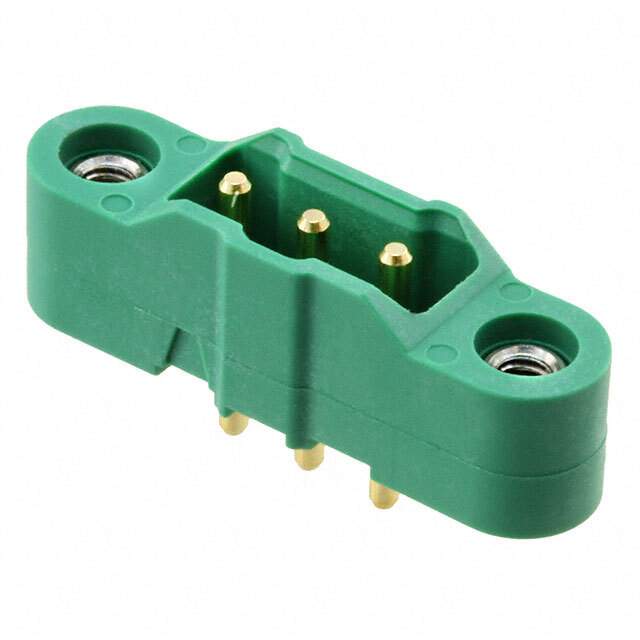

Same model may have multiple batches, images only for reference.

M300-MV10345M1

Name: M300-MV10345M1
Brand: Harwin Inc.
SKU: 1337312
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M300-MV10345M1
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 3POS 3MM / Connector Header Through Hole 3 position 0.118" (3.00mm)
Datasheet	M300-MV10345M1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	M300
Package	Tube
Connector Type	Header
Contact Type	Male Pin, Power
Pitch - Mating	0.118" (3.00mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Threaded
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.276" (7.00mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Material	Brass
Insulation Material	Polyamide (PA46) , Nylon 4/6, Glass Filled
Features	Mating Flange
Temperature Range - Operating	-65°C ~ 175°C
Material Flammability Rating	UL94 V-0
Insulation Color	Green
Current Rating (Amps)	10A
Voltage Rating	600VAC/DC
Mated Stacking Heights	8.9mm
Base Product Number	M300-MV1
Standard Package	12
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1337312-M300-MV10345M1
Ultra Librarian 3D Model	Ultra Librarian M300-MV10345M1 CAD Model

Alternative Products

Description

The M300-MV10345M1 is a male pin header connector designed for use in board-to-board or cable applications.

Connector Type: Header
Contact Type: Male Pin, Power
Number of Positions: 3
Number of Rows: 1
Loaded Positions: All
Pitch - Mating: 0.100" (2.54mm)
Termination: Solder
Fastening Type: Threaded
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Voltage Rating: 600VAC/DC
Current Rating (Per Contact): 10A
Contact Material: Brass
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
Insulation Color: Green
Operating Temperature: -65°C ~ 175°C
Material Flammability Rating: UL94 V-0
Packaging: Tube
Standard Package: 12
