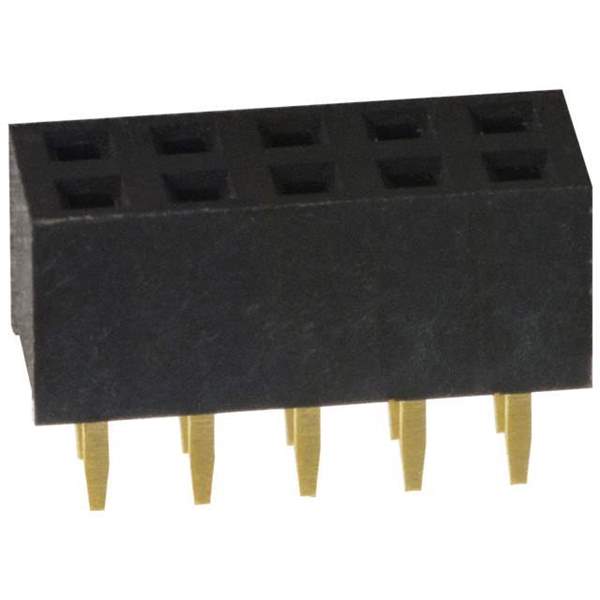

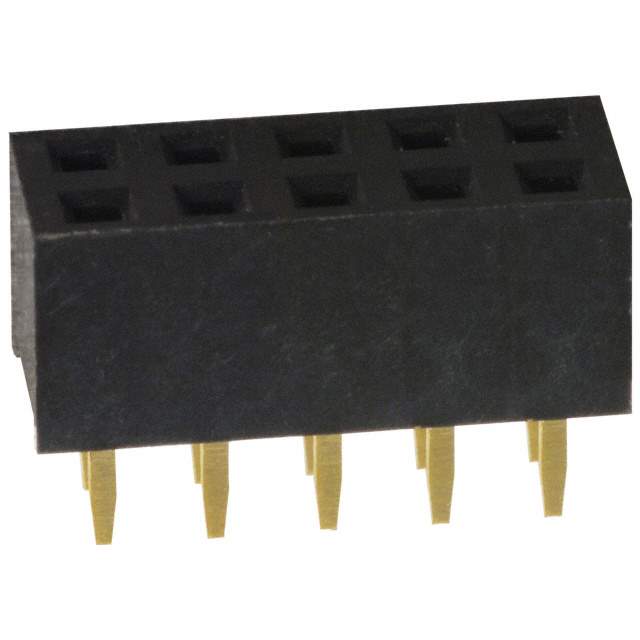

Same model may have multiple batches, images only for reference.

NPPN052AFCN-RC

Name: NPPN052AFCN-RC
Brand: Sullins Connector Solutions
SKU: 1383050
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NPPN052AFCN-RC
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HDR 10POS 0.079 GOLD PCB / 10 Position Header Connector 0.079" (2.00mm) Through Hole Gold
Datasheet	NPPN052AFCN-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Mfr	Sullins Connector Solutions
Series	-
Package	Tube
Connector Type	Header
Contact Type	Female Socket
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.169" (4.30mm)
Contact Length - Post	0.094" (2.40mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Mated Stacking Heights	-
Ingress Protection	-
Features	-
Current Rating (Amps)	1A
Voltage Rating	-
Applications	-
Insulation Material	Polyamide (PA6T), Nylon 6T
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	Flash
Base Product Number	NPPN052
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	57 pcs
Win Source Part Number	1383050-NPPN052AFCN-RC
Ultra Librarian 3D Model	Ultra Librarian NPPN052AFCN-RC CAD Model

Alternative Products

Description

The NPPN052AFCN-RC is a dual-row female socket header connector from Sullins Connector Solutions.

Positions: 10
Termination: Through-Hole Mounting
Fastening Type: Push-Pull
Contact Finish: Gold (Mating Contacts)
Insulation Material: Polyamide (PA6T) and Nylon 6T
Flammability Rating: UL94 V-0
Pitch: 0.079" (2.00mm)
Contact Shape: Square
Operating Temperature: -40°C to 105°C
Applications: Headers, Receptacles, and Female Sockets for Board-to-Board
