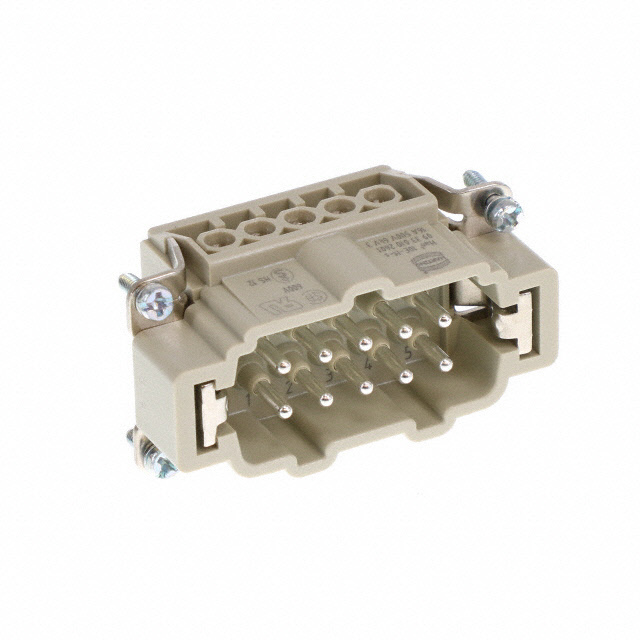

9330102601 HARTING – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, InterconnectsHeavy Duty ConnectorsHeavy Duty Connector Inserts, Modules
Manufacturer HARTING
Series Han? E
Packaging Bulk
Part Status Active
Connector Type Insert
Gender Male
Number of Positions 10+Ground
Size 10B
Termination Style Screw
Voltage Rating 600V
Current Rating (Amps) 16A
Operating Temperature -40°C ~ 125°C
Color Gray
Housing Material Polycarbonate (PC)
Contact Material Copper Alloy
Contact Finish Silver
Material Flammability Rating UL94 V-0
Base Product Number 09330102
Ultra Librarian 3D Model Ultra Librarian 9330102601 CAD Model
