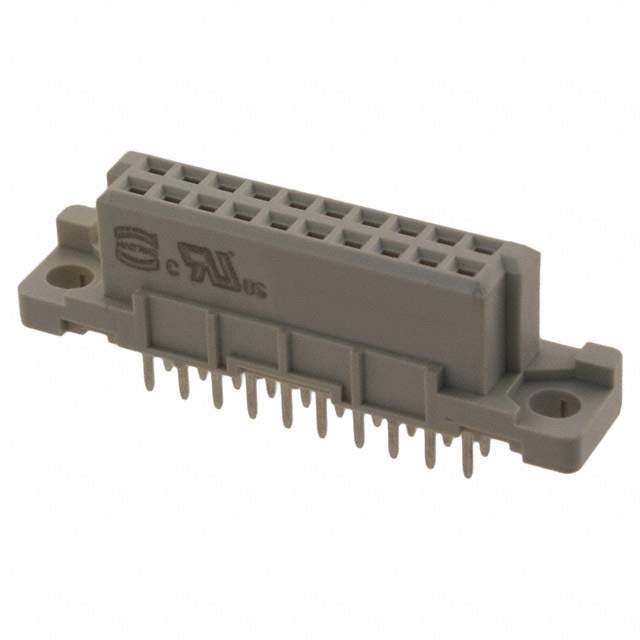

09242206825

Name: 09242206825
Brand: HARTING
SKU: 1333137
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	09242206825
Manufacturer	HARTING
Catalog	Backplane Connectors
Description	CONN DIN RCPT 20POS PCB GOLD / 20 Position Din Connector Receptacle, Female Sockets Gold Through Hole
Datasheet	09242206825 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Backplane Connectors>DIN 41612
Manufacturer	HARTING
Packaging	Bulk
Connector Type	Receptacle, Female Sockets
Number of Positions	20
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Style	3B
Level, Class	2
Mounting	Through Hole
Termination	Solder
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
Material - Insulation	Thermoplastic, Glass Filled
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	9242206825,1195-1872
Standard Package	20
Win Source Part Number	1333137-09242206825
Ultra Librarian 3D Model	Ultra Librarian 09242206825 CAD Model

Description

HARTING 1333137-09242206825 is a female socket receptacle connector with 20 positions and a pitch of 0.100” (2.54mm).

Mounting: Through-hole
Rows: 2
Positions Loaded: All
Termination Type: Solder
Contact Finish: Gold
Insulation Material: Thermoplastic and Glass Filled
Flammability Rating: UL94 V-0
Standard Package: 20
Classification: Style 3B with a level class of 2
Temperature Range: -40°C to 85°C (TA)
ROHS3 Compliant: Yes
Application: Backplane connectors and DIN 41612 applications
