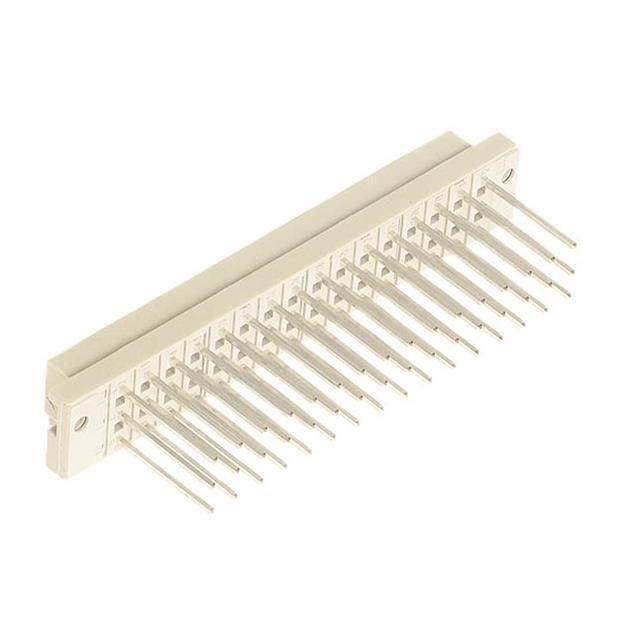

09052482821 Real Image
Same model may have multiple batches, images only for reference.

09052482821

Part No 09052482821
Manufacturer HARTING
Catalog Backplane Connectors
Description CONN DIN RCPT 48POS PCB / 48 Position Din Connector Receptacle, Female Sockets Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr HARTING
Series DIN 41612
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 48
Number of Positions Loaded All
Pitch 0.200" (5.08mm)
Number of Rows 3
Style E
Level, Class 1
Mounting Type Through Hole
Termination Solder
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 6A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT) , Glass Filled
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350054-09052482821
Ultra Librarian 3D Model Ultra Librarian 09052482821 CAD Model

Description

This is a DIN 41612 series connector with 48 positions and a pitch of 0.200" (5.08mm).

  • Connector Type: receptacle, female sockets
  • Positions Loaded: all positions loaded
  • Rows: 3
  • Termination: solder
  • Insulation Material: Polybutylene Terephthalate (PBT) and Glass Filled
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 125°C
  • Current Rating: 6A
  • REACH: unaffected
