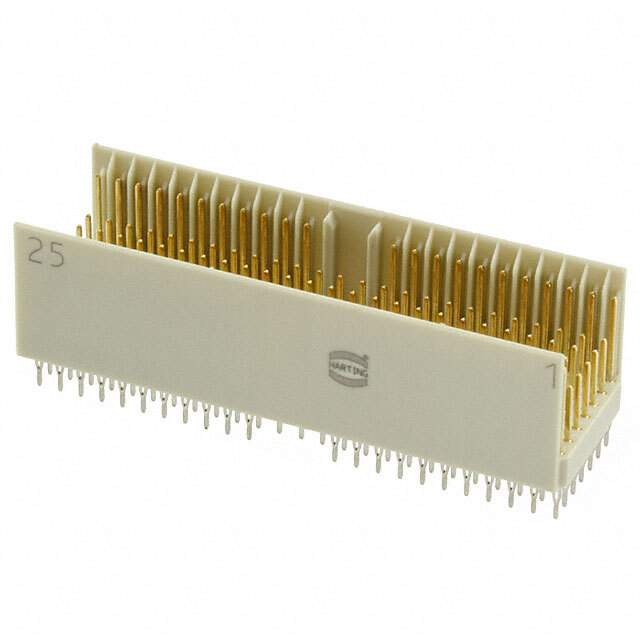

17151692201 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>Hard Metric, Standard
Manufacturer HARTING
Packaging Tube
Connector Type Header, Male Pins
Connector Style AB 25
Number of Positions 169 (125 + 44 Ground)
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5 + 2
Mounting Through Hole
Termination Press-Fit
Connector Usage Backplane-to-Daughtercard
Contact Finish Gold or Gold-Palladium
Current Rating (Amps) 1 A
Temperature Range - Operating -55°C ~ 125°C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 17151692201-ND,1195-5284
Standard Package 10
Win Source Part Number 1333237-17151692201
Ultra Librarian 3D Model Ultra Librarian 17151692201 CAD Model

Description

The 1333237-17151692201 is a hard metric standard backplane connector manufactured by HARTING.

  • Connector Type: Male Header
  • Positions: 169 (125+44 ground)
  • Pitch: 0.079 inches (2.00mm)
  • Termination: Press-Fit
  • Contact Finish: Gold or Gold-Palladium
  • Application: Backplane-to-Daughtercard Connections
  • RoHS3 Compliant: Yes
  • REACH Status: Unaffected
