Same model may have multiple batches, images only for reference.

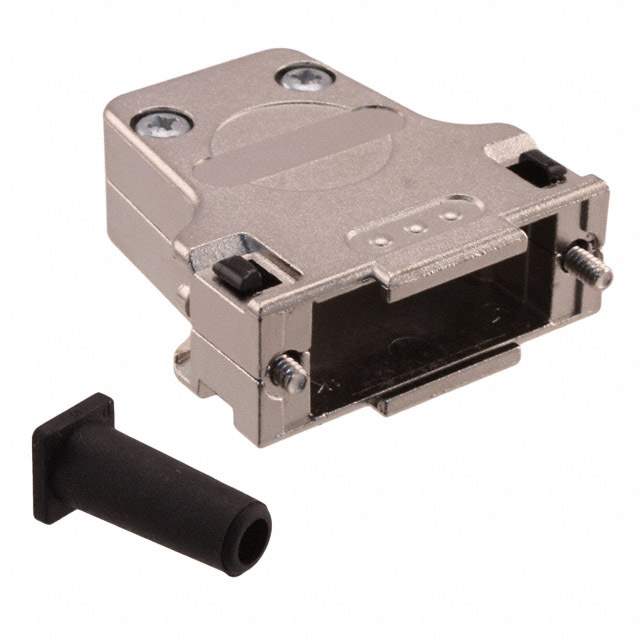

09670150344 Real Image
Same model may have multiple batches, images only for reference.

09670150344

Part No 09670150344
Manufacturer HARTING
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 15POS 180DEG
Datasheet
09670150344 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Backshells, Hoods
Mfr HARTING
Package Box
Product Status Active
Accessory Type Two Piece Backshell
Number of Positions 15
Cable Type Round
Cable Exit 180°
Material Metal
Hardware Assembly Hardware
Features Mating Screws 4-40
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 853453-09670150344
Ultra Librarian 3D Model Ultra Librarian 09670150344 CAD Model

Description

The 853453-09670150344 is a two-piece backshell designed for D-Sub connectors with 15 positions manufactured by HARTING.

  • Features: Mating Screws
  • Thread Size: 4-40
  • Material: Metal
  • Cable Exit: 180-Degree Angle
  • Cable Type: Round Cables
  • Category: Connectors, Interconnects, D-Sub
  • Package: 10 pieces
  • Product Status: Active
