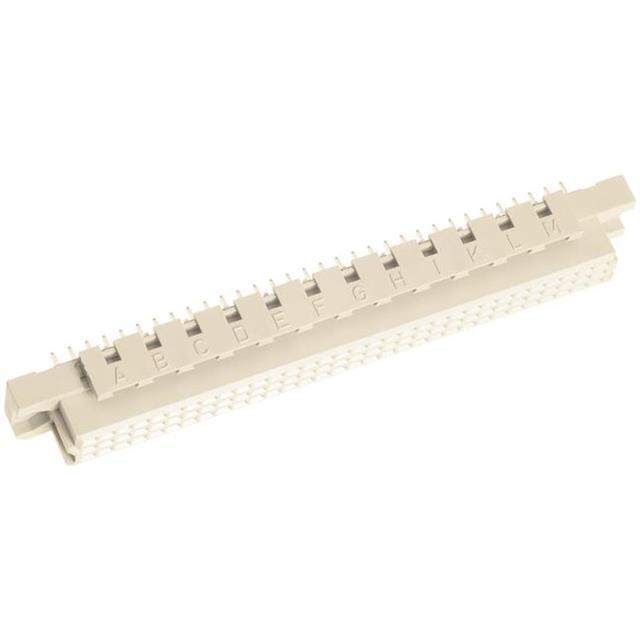

09037966825 Real Image
Same model may have multiple batches, images only for reference.

09037966825

Part No 09037966825
Manufacturer HARTING
Catalog Backplane Connectors
Description CONN DIN RCPT 96POS PCB / 96 Position Din Connector Receptacle, Female Sockets Through Hole
Datasheet
09037966825 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr HARTING
Series DIN 41612
Package Bulk
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 96
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C
Level, Class 2
Mounting Type Through Hole
Termination Solder
Material Flammability Rating UL94 V-0
Material - Insulation Thermoplastic, Glass Filled
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 904770-09037966825
Ultra Librarian 3D Model Ultra Librarian 09037966825 CAD Model

Description

The 904770-09037966825 is a DIN 41612 Backplane Connector from HARTING.

  • Connector Type: Receptacle
  • Gender: Female
  • Positions: 96
  • Pitch: 0.100" (2.54mm)
  • Mounting Type: Through Hole
  • Termination Method: Soldering
  • Insulation Material: Thermoplastic, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Package Quantity: 20
  • Series: DIN 41612
  • Level/Class: Level 2
  • Operating Temperature: Not Specified
  • REACH: Unaffected
  • ECCN: EAR99
  • MSL: 1 (Unlimited Floor Life)
  • Current Rating: Not Specified
  • Contact Finish: Not Specified
  • HTSUS Code: 8536.69.4040
  • Product Status: Active
  • Manufacturer: HARTING
