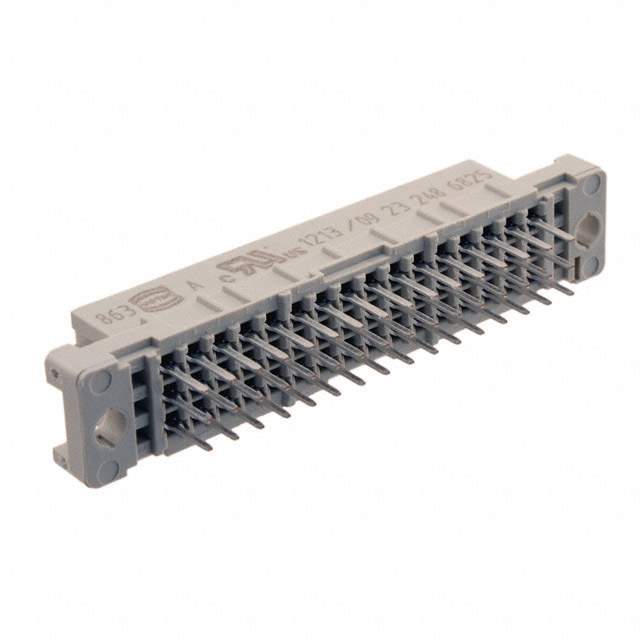

09232486825 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr HARTING
Series DIN 41612
Package Bulk
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 48
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style 2C
Level, Class 2
Mounting Type Through Hole
Termination Solder
Material Flammability Rating UL94 V-0
Material - Insulation Thermoplastic, Glass Filled
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 858605-09232486825
Ultra Librarian 3D Model Ultra Librarian 09232486825 CAD Model

Description

The 858605-09232486825 is a DIN 41612 Backplane Connector with 48 positions.

  • Positions: 48
  • Pitch: 0.100" (2.54mm)
  • Type: Receptacle with Female Sockets
  • Positions Loaded: All
  • Rows: 3
  • Termination: Soldering
  • Insulation Material: Thermoplastic, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Mounting: Through-Hole
  • Temperature Range: Wide Temperature Range
