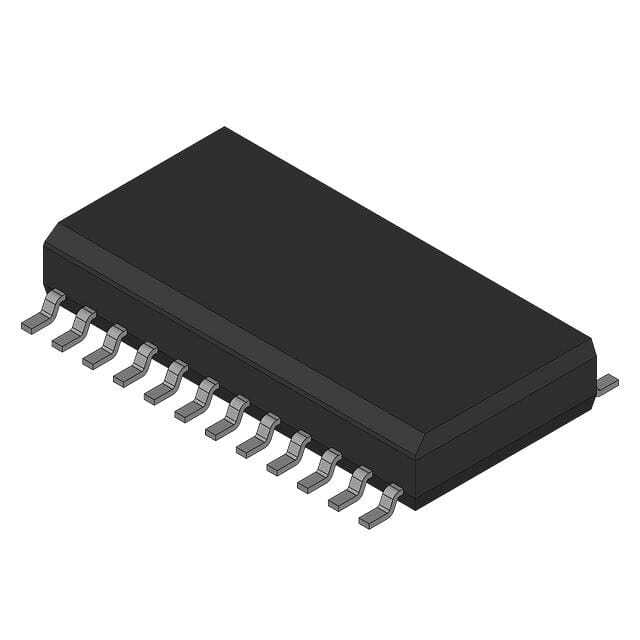

The HIN209IB is a line driver/receiver integrated circuit manufactured by Harris Corporation (now Intersil, acquired by Renesas). It is designed for RS-232 communication, providing a robust interface between digital systems and RS-232 serial ports. This IC integrates both drivers and receivers, making it a versatile solution for serial data transmission.

Applications:

• Computer Serial Ports: Used in legacy computer systems to interface with RS-232 serial ports for data communication.
• Data Acquisition Systems: Employed in data acquisition devices for serial communication with sensors and other peripherals.
• Industrial Control Systems: Integrated into industrial control equipment for serial communication with PLCs, HMIs, and other control devices.
• Embedded Systems: Utilized in embedded systems for serial communication with external devices such as modems, printers, and other serial interfaces.
• Diagnostic Equipment: Found in diagnostic tools for serial communication with electronic systems for data analysis and troubleshooting.

Features:

• RS-232 Compatibility: Complies with RS-232 communication standards for reliable serial data transmission.
• Integrated Drivers and Receivers: Includes both drivers and receivers in a single package, simplifying circuit design.
• High Baud Rate Support: Supports high baud rates for fast and efficient serial data transmission.
• Short-Circuit Protection: Features short-circuit protection to prevent damage from electrical faults.
• ESD Protection: Incorporates ESD protection to prevent damage from electrostatic discharge.

Benefits:

• Simplified Design: Integrated drivers and receivers reduce the number of components needed, simplifying circuit design and reducing board space.
• Reliable Communication: Provides a robust and reliable RS-232 interface, ensuring consistent data transmission.
• Protection Against Electrical Faults: Short-circuit and ESD protection enhance the IC's durability and prevent damage from electrical issues.
• Fast Data Transmission: High baud rate support enables fast and efficient serial data transmission.
• Cost-Effective Solution: Integrated functionality and robust design provide a cost-effective solution for RS-232 communication.

Additional Details:

The HIN209IB operates on a single 5V power supply and is available in various package options. Its low power consumption makes it suitable for battery-powered applications. The IC’s internal charge pump generates the necessary voltage levels for RS-232 communication, eliminating the need for external components. It is designed to meet stringent industry standards for performance and reliability. The HIN209IB is an ideal choice for applications requiring a robust and reliable RS-232 interface with integrated drivers and receivers.
