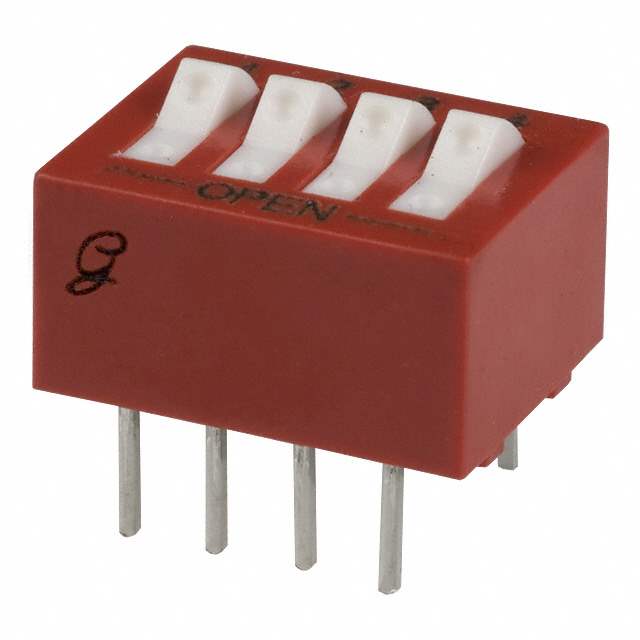

GH1104 Real Image
Same model may have multiple batches, images only for reference.

GH1104

Part No GH1104
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH ROCKER DIP SPST 150MA 30V
Datasheet
GH1104 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Grayhill Inc.
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit SPST
Number of Positions 4
Current Rating 150mA
Voltage Rating 30VDC
Actuator Type Rocker
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.315" (8.00mm)
Mounting Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Body Material Thermoplastic
Length 0.480" (12.19mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Win Source Part Number 204432-GH1104
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian GH1104 CAD Model

Description

The 204432-GH1104 is a through-hole SPST rocker switch manufactured by Grayhill Inc. It has 4 positions with a pitch of 2.54mm. This switch provides a simple on/off function in various electronic circuits.

  • Type: SPST Rocker Switch
  • Mounting: Through-Hole
  • Manufacturer: Grayhill Inc.
  • Positions: 4
  • Pitch: 2.54mm
  • Voltage Rating: 30VDC
  • Current Rating: 150mA
  • Mechanical Life: 2,000 cycles
  • Electrical Life: 2,000 cycles
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand: Balanced
