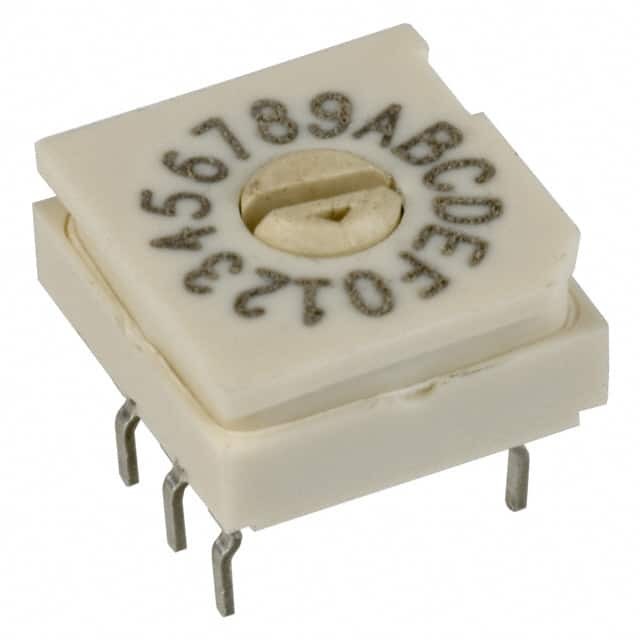

94HAB16T
Same model may have multiple batches, images only for reference.

94HAB16T

Part No 94HAB16T
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH ROTARY DIP HEX 100MA 50V / Dip Switch Hexadecimal 16 Position Through Hole Rotary for Tool Actuator 100mA 50VDC
Datasheet
94HAB16T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Grayhill Inc.
Series 94H
Package Tube
Product Status Active
Circuit Hexadecimal
Number of Positions 16
Current Rating (Amps) 100mA
Voltage Rating 50VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.225" (5.72mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Sealed
Temperature Range - Operating -40°C ~ 85°C
Body Material Plastic
Length 0.390" (9.91mm)
Mechanical Life 10,000 Cycles
Base Product Number 94HAB16
Standard Package 27 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 858675-94HAB16T
Ultra Librarian 3D Model Ultra Librarian 94HAB16T CAD Model

Description

The 94HAB16T DIP Switch is a high-quality electronic component manufactured by Grayhill Inc.

  • Series: 94H
  • Positions: 16
  • Pitch: 0.100" (2.54mm)
  • Termination Style: PC Pin
  • Design: Sealed
  • Contact Finish: Gold
  • Package Quantity: 27
  • Packaging: Tube
  • Contact Material: Copper Alloy
  • Voltage Rating: 50VDC
  • Height Above Board: 0.225" (5.72mm)
  • Length: 0.390" (9.91mm)
