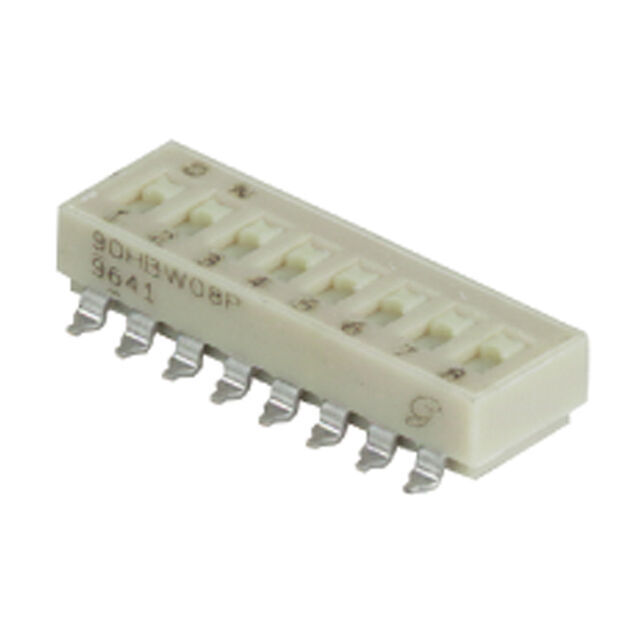

Same model may have multiple batches, images only for reference.
90HBW10PRT Grayhill Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

90HBW10PRT

Part No 90HBW10PRT
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 0.025A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category SwitchesDIP Switches
Manufacturer Grayhill Inc.
Series 90HB
Packaging Tape & Reel (TR)
Part Status Active
Circuit SPST
Number of Positions 10
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.190" (4.83mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Operating Temperature -40°C ~ 85°C
Body Material Thermoplastic
Length 1.070" (27.18mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number 90HBW10
Ultra Librarian 3D Model Ultra Librarian 90HBW10PRT CAD Model
