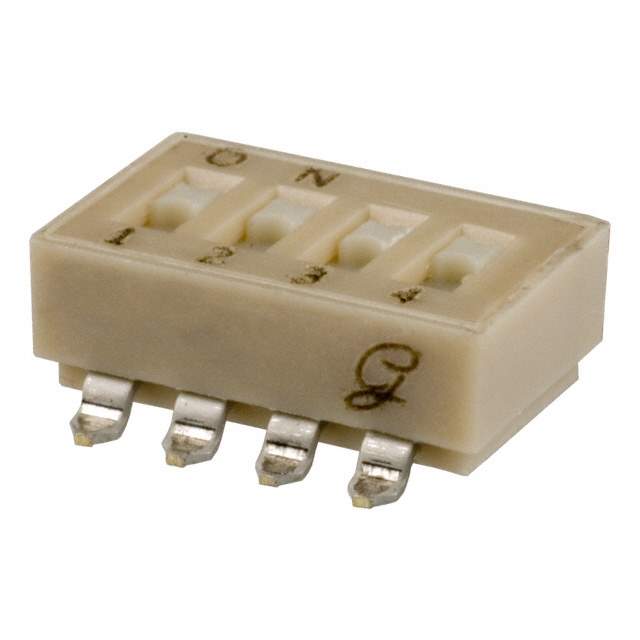

Same model may have multiple batches, images only for reference.

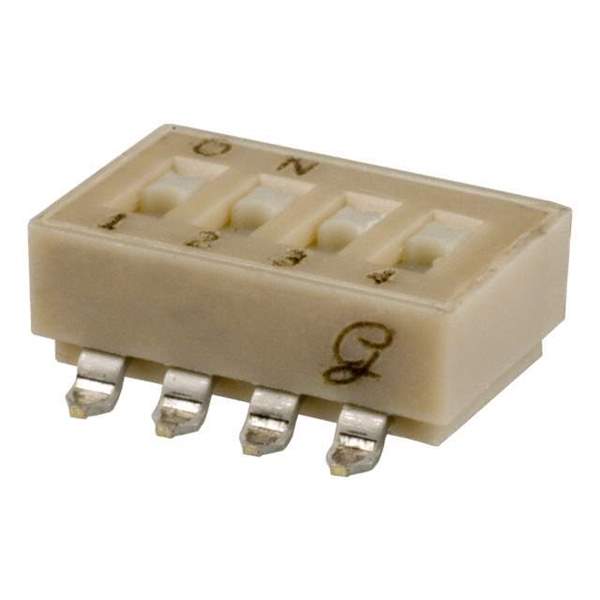

90HBW04PRT Real Image
Same model may have multiple batches, images only for reference.

90HBW04PRT

Part No 90HBW04PRT
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
90HBW04PRT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Grayhill Inc.
Packaging Reel - TR
Status Active
Circuit SPST
Number of Positions 4
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.190" (4.83mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Body Material Thermoplastic
Length 0.470" (11.94mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Win Source Part Number 126643-90HBW04PRT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 90HBW04PRT CAD Model

Description

Overview of 90HBW04PRT

The 90HBW04PRT is designed for heavy-duty applications. It's built to withstand demanding environments while providing consistent performance.

Features and Benefits

  • Heavy-Duty Design: Ideal for rugged conditions.
  • Consistent Output: Delivers reliable performance.
  • Versatile Use: Suitable for various sectors.

Applications and Projects

  • Construction equipment
  • Telecommunications
  • Energy infrastructure

The 90HBW04PRT's robust features make it indispensable for projects requiring high durability and effectiveness.
