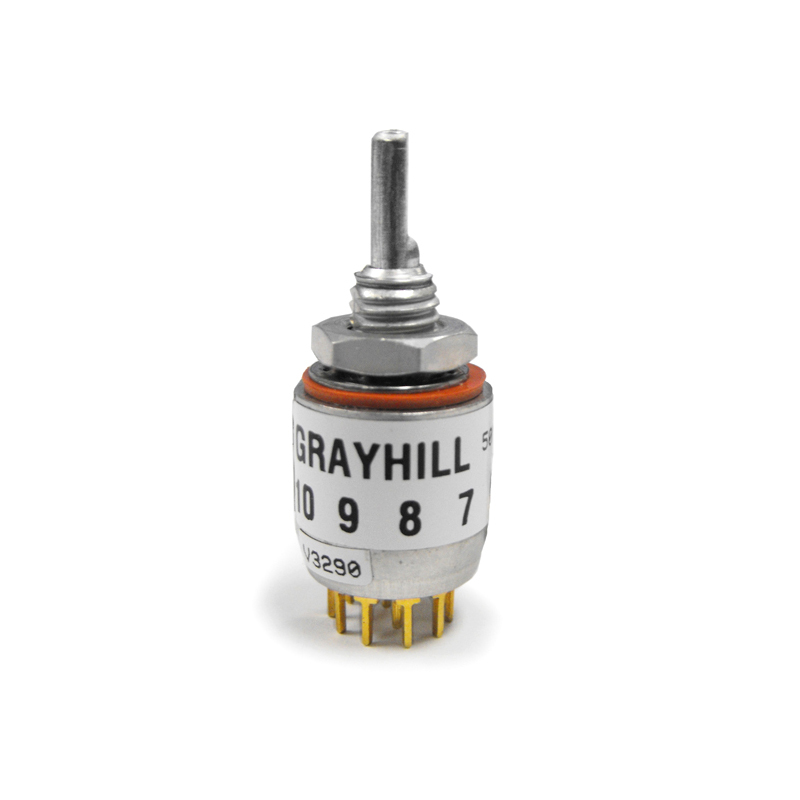

Same model may have multiple batches, images only for reference.
50DP36-01-1-AJS Grayhill Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

50DP36-01-1-AJS

Part No 50DP36-01-1-AJS
Manufacturer Grayhill Inc.
Catalog Rotary Switches
Description SWITCH ROTARY 2-10POS 150MA 115V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Positions 2 ~ 10
Index Stops Adjustable
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP10T
Contact Timing Shorting (MBB)
Current Rating (Amps) 150mA (AC), 200mA (DC)
Voltage Rating - AC 115 V
Voltage Rating - DC 28 V
Actuator Type Flatted (3.17mm Dia)
Actuator Length 9.53mm
Angle of Throw 36°
Contact Finish Gold
Mounting Type Panel Mount, Through Hole
Termination Style PC Pin
Depth Behind Panel 13.64mm
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1559219-50DP36-01-1-AJS
Ultra Librarian 3D Model Ultra Librarian 50DP36-01-1-AJS CAD Model
