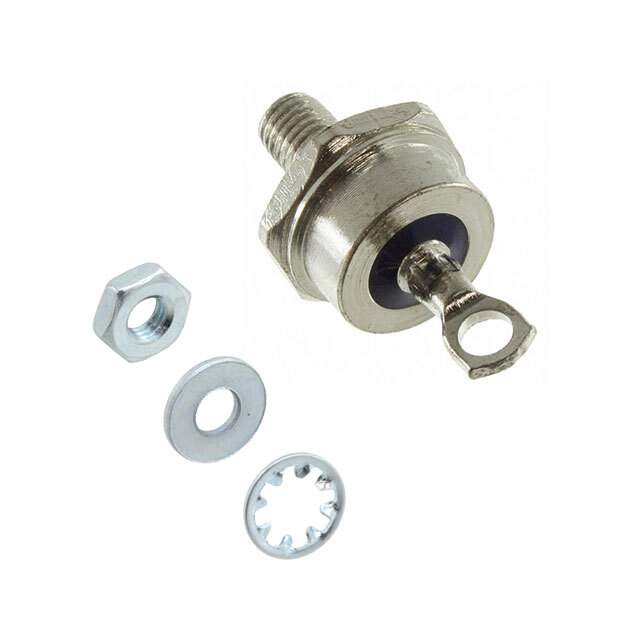

S40B Real Image
Same model may have multiple batches, images only for reference.

S40B

Part No S40B
Manufacturer GeneSiC Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 40A DO5 / Diode Standard 100 V 40A Stud Mount DO-203AB (DO-5)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr GeneSiC Semiconductor
Package Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 40A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 40 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 100 V
Mounting Type Stud Mount
Package / Case DO-203AB, DO-5, Stud
Supplier Device Package DO-203AB (DO-5)
Operating Temperature - Junction -65°C ~ 190°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1242-1286,S40BGN-ND,S40BGN
Standard Package 100
Win Source Part Number 1132801-S40B
Ultra Librarian 3D Model Ultra Librarian S40B CAD Model

Description

The GeneSiC Semiconductor S40B is a standard recovery diode that is used in rectifier circuits.

  • Product: S40B
  • Manufacturer: GeneSiC Semiconductor
  • Type: Standard Recovery Diode
  • Application: Rectifier Circuits
  • Average Rectified Current: 40A
  • Reverse Voltage: 100V
  • Forward Voltage: 1.1V @ 40A
  • Reverse Leakage Current: 10µA @ 100V
  • Mounting: Stud Mounting
  • Package: DO-203AB (DO-5)
  • Temperature Range: -65°C to 190°C
