Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 45V
Current - Average Rectified (Io) (per Diode) 300A (DC)
Voltage - Forward (Vf) (Maximum) at If 650mV at 150A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 8mA at 20V
Mounting Style Chassis Mount
Manufacturer Package Twin Tower
Supplier Device Package Twin Tower
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1216082-MBR30045CT
Manufacturer Homepage www.mccsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MBR30045CT CAD Model

Description

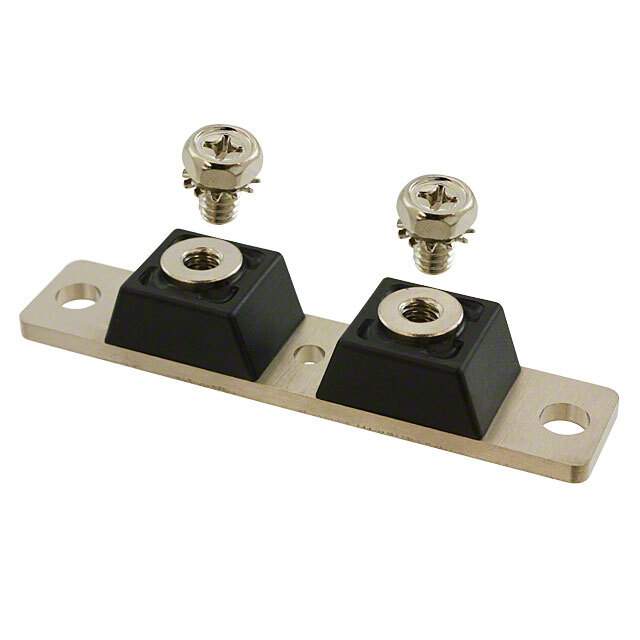

The GeneSiC Semiconductor MBR30045CT is a pair of common cathode Schottky diodes in a Twin Tower package.

  • Voltage Rating: 45V
  • Current Rating: 300A
  • Recovery Time: 200mA (fast)
  • Mounting: Chassis mountable
  • Package Quantity: 25 units
  • Popularity: Popular
  • Manufacturer Website: www.mccsemi.com
