Same model may have multiple batches, images only for reference.

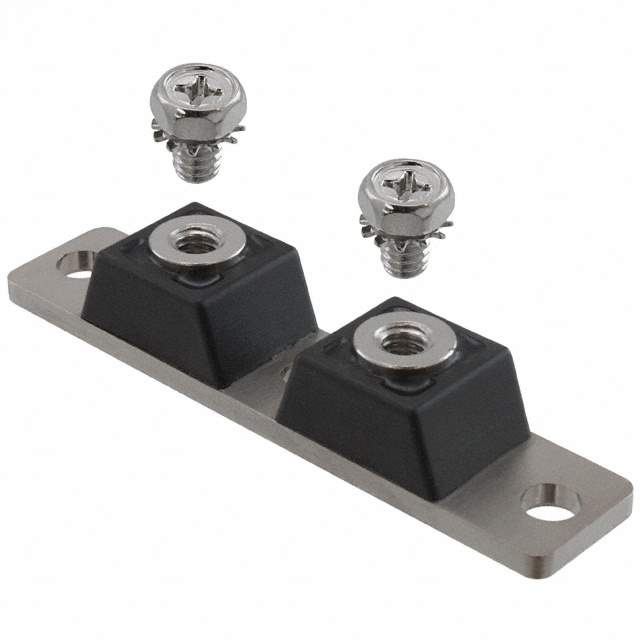

MBR120200CT Real Image
Same model may have multiple batches, images only for reference.

MBR120200CT

Part No MBR120200CT
Manufacturer GeneSiC Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 200V 60A 2 TOWER / Diode Array 1 Pair Common Cathode Schottky 200 V 60A Chassis Mount Twin Tower
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr GeneSiC Semiconductor
Package Bulk
Product Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) (per Diode) 60A
Voltage - Forward (Vf) (Max) @ If 920 mV @ 60 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 mA @ 200 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Chassis Mount
Package / Case Twin Tower
Supplier Device Package Twin Tower
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 25
Win Source Part Number 1120932-MBR120200CT
Ultra Librarian 3D Model Ultra Librarian MBR120200CT CAD Model

Description

The 1120932-MBR120200CT is a discrete semiconductor product that belongs to the Diodes - Rectifiers - Arrays category. It is an obsolete product with fast recovery speed of <500ns and >200mA (Io). The diode type of this component is Schottky and it has a voltage - DC reverse (Vr) (Max) of 200 V. The voltage - forward (Vf) (Max) @ If is 920 mV @ 60 A. The operating temperature range of this component is -55°C ~ 150°C. It is a chassis mount product with twin tower package.
