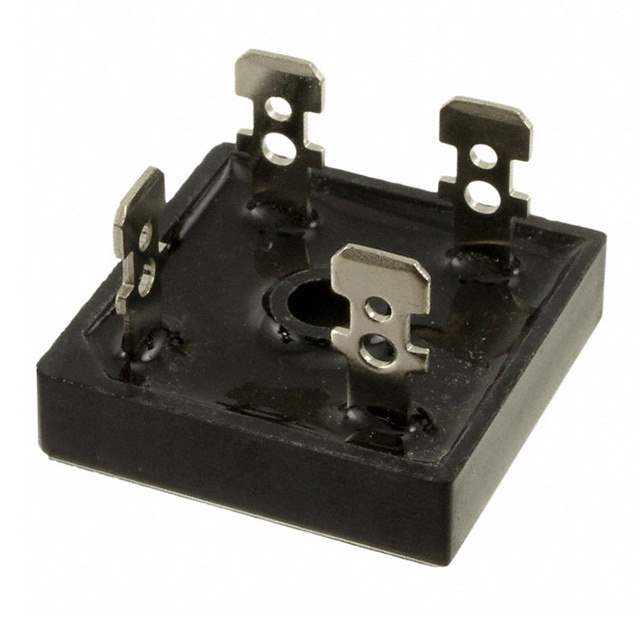

KBPC3510T Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1000V
Current - Average Rectified (Io) 35A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 17.5A
Current - Reverse Leakage @ Vr 5μA @ 1000V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Chassis Mount
Case / Package KBPC-T
Win Source Part Number 002142-KBPC3510T
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian KBPC3510T CAD Model

Description

The GeneSiC Semiconductor 002142-KBPC3510T is a single-phase standard diode with a current rating of 35A and a maximum forward voltage of 1.1V @ 17.5A.

  • Peak Reverse Voltage: 1000V
  • Reverse Leakage Current: 5μA @ 1000V
  • Mounting: chassis-mounted
  • Package: KBPC-T
  • Ideal for: use in discrete semiconductor products
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Popularity: popular
  • Supply and Demand Status: limited
  • Package Quantity: 50
