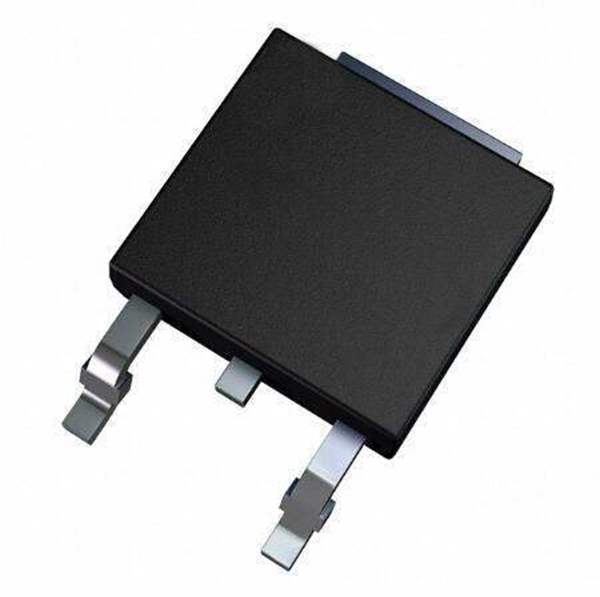

GC05MPS12-252 GeneSiC Semiconductor
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer GeneSiC Semiconductor
Category Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Part Status Obsolete
Voltage - DC Reverse (Vr) (Max) 1200 V
Speed No Recovery Time > 500mA (Io)
Current - Reverse Leakage @ Vr 4 µA @ 1200 V
Capacitance @ Vr, F 359pF @ 1V, 1MHz
Mounting Type Surface Mount
Supplier Device Package TO-252-2
Operating Temperature - Junction -55°C ~ 175°C
Win Source Part Number WS1305532-GC05MPS12-252
Ultra Librarian 3D Model Ultra Librarian GC05MPS12-252 CAD Model

Description

Features • Low V for High Temperature Operation • Enhanced Surge and Avalanche Robustness • Superior Figure of Merit Q /I • Low Thermal Resistance • Low Reverse Leakage Current • Temperature Independent Fast Switching • Positive Temperature Coefficient of V • High dV/dt Ruggedness<br />
