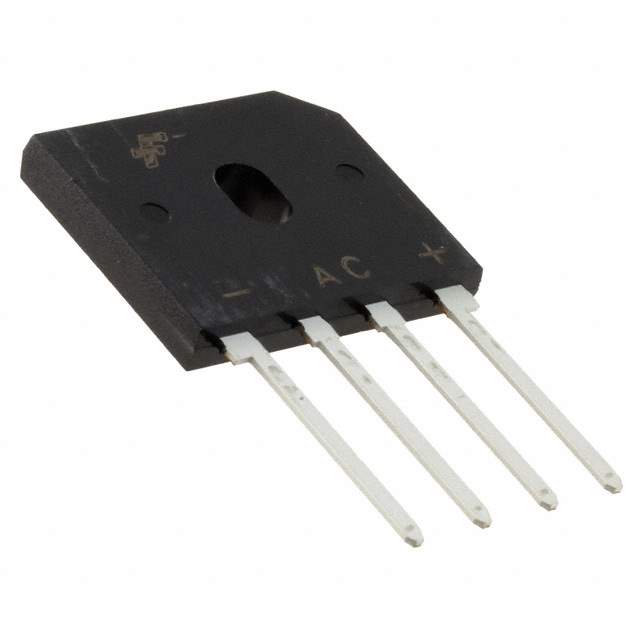

GBU6M Real Image
Same model may have multiple batches, images only for reference.

GBU6M

Part No GBU6M
Manufacturer GeneSiC Semiconductor
Catalog Bridge Rectifiers
Description GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER | BRIDGE RECT 1PHASE 1KV 6A GBU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1kV
Current - Average Rectified (Io) 6A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 6A
Current - Reverse Leakage at Vr 5μA at 1000V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 4-SIP, GBU
Supplier Device Package GBU
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1177035-GBU6M
Manufacturer Homepage www.zowie.com.tw
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian GBU6M CAD Model

Description

The GeneSiC Semiconductor GBU6M is a single-phase standard rectifier diode that is used in power management applications.

  • Maximum Average Rectified Current: 6A
  • Peak Reverse Voltage: 1kV
  • Forward Voltage: 1.1V @ 6A
  • Reverse Leakage Current: 5μA @ 1000V
  • Mounting Type: through-hole
  • Packaging: bulk
  • Temperature Range: -55°C to 150°C
  • Reliability: reliable and efficient diode that delivers consistent performance
